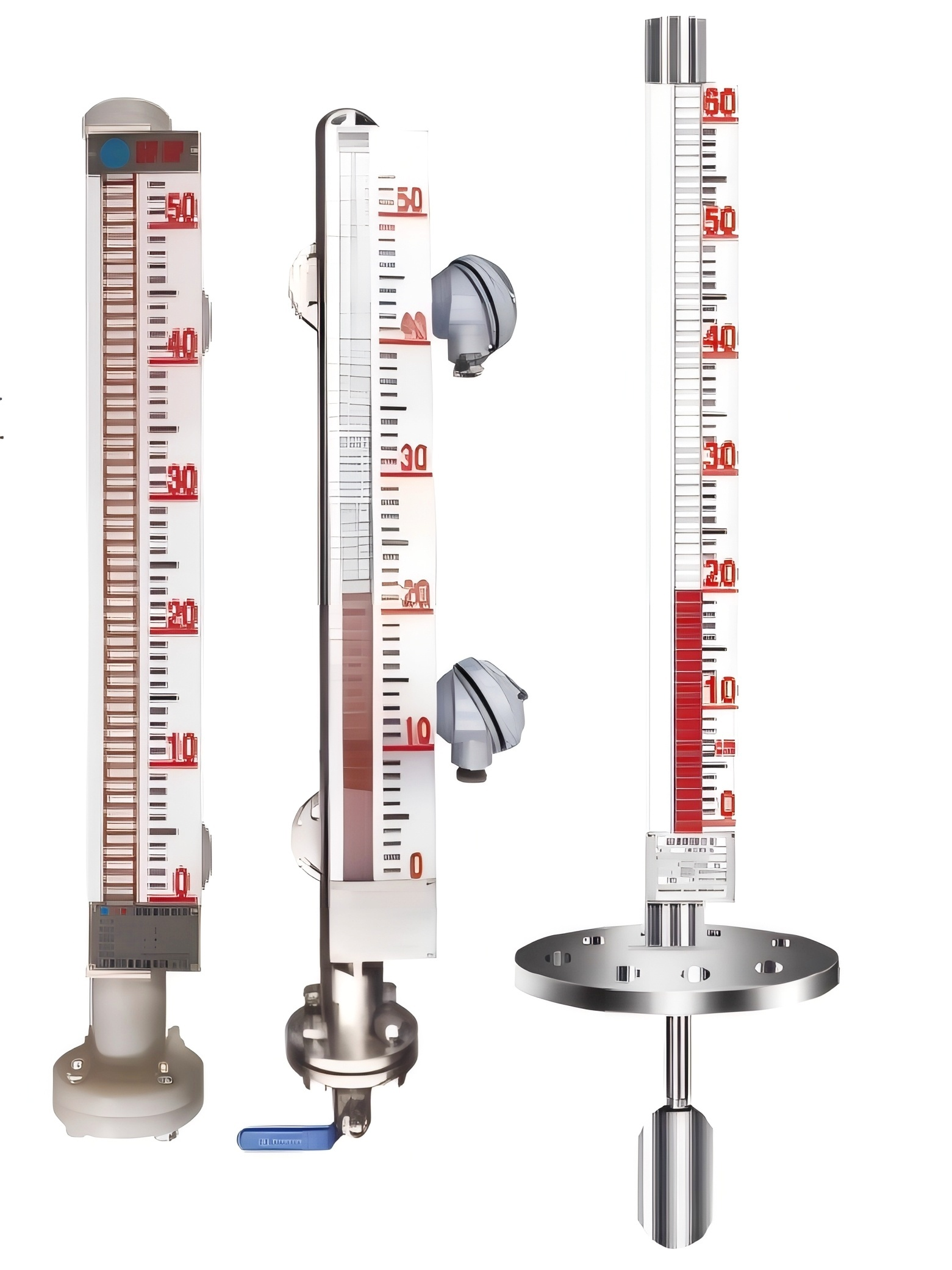

Magnetic Float Level Gauge

Magnetic flip plate liquid level meter is the use of bulk tube and tank(or container equipment) to form a communication device, so that the level of the two is the same, under the action of liquid buoyancy, when the liquid level rises(falls), the float on the liquid surface rises (falls), the permanent magnetic steel in the float under the action of magnetic coupling, driving the same with magnetic red and white flip beads for 180°. Thus, the liquid level height can be clearly and intuitively indicated through the scale of the red and white dividing line in the box board. With remote transmitter and magnetic switch, it can easily output 4~20mA or switch signal to achieve remote control.

1. Suitable for high temperature,high pressure,strong acid,strong alkali, simple structure,reliable and durable, can be equipped with a variety of optional equipment to make the control easier.

2. Equipped with liquid level transmitter and magnetic switch, can be installed or adjusted at any time without stopping.

3. If the power supply is interrupted, the field magnetic switch is not affected by the high accuracy.

Suitable tor cloth dyeing and finishing equipment, wastewater treatment, power plant, chemical equipment, heat medium oil boiler and petrochemical industry.
