Multi-parameter water quality analyzer
Monitoring Mode: High-penetration point measurement with multi-point, wide-range, high-precision velocity detection.
Scanning Mode: Millisecond-level continuous rapid measurement for real-time flow velocity fluctuation analysis.
High Measurement Accuracy: Equipped with dual high-frequency, high-sensitivity transducers and low phase-noise transmit/receive circuits, combined with a built-in high-precision temperature sensor for real-time water temperature compensation, ensuring accuracy in all conditions.
Ultra-Low Velocity Capability: Measures flow rates as low as 0.005 m/s.

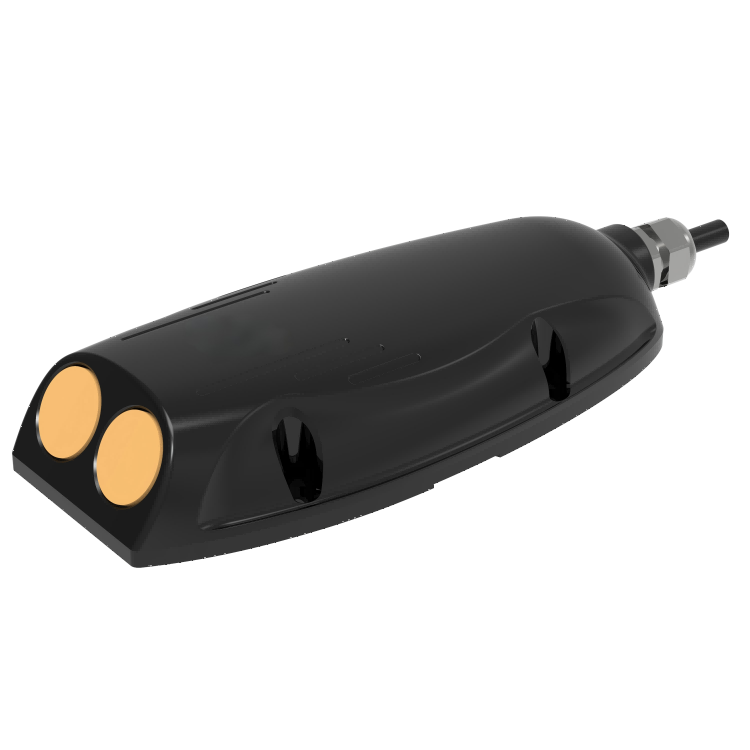

Compact, Reliable & Durable: Small streamlined design minimizes debris entanglement and flow disturbance; fully sealed housing made from corrosion-resistant high-strength engineering plastic for long-term use.
Flow Monitoring for Box Culverts, Underground Pipelines, and Drainage Outlets
Flow Monitoring for Open Channels, Rivers, and Pipelines
| Model | LS FMD-1DSPNG |
| Product Dimensions | 159*76*30mm |
| Flow Rate Range | ±0.01m/s to ±5m/s |
| Flow Rate Accuracy | ±0.5%FS,±2mm/s |
| Flow Rate Resolution | 1mm/s |
| Water Level Range | 0-10m |
| Water Level Accuracy | ±1%FS |
| Water Level Resolution | 1mm |
| Minimum Measurable Water Level | 2.5cm |
| Temperature Detection Range | -20~80℃ |
| Power Supply Voltage | 7-32VDC |
| Power Supply Current | 40mA average, 500mA peak (at 12V) |
| Cable Length | 10m |
| Body Protection | IP68 |
| Data Output | RS485, MODBUS protocol |
| Interface Protection | Electrostatic discharge, reverse polarity protection, surge protection |
