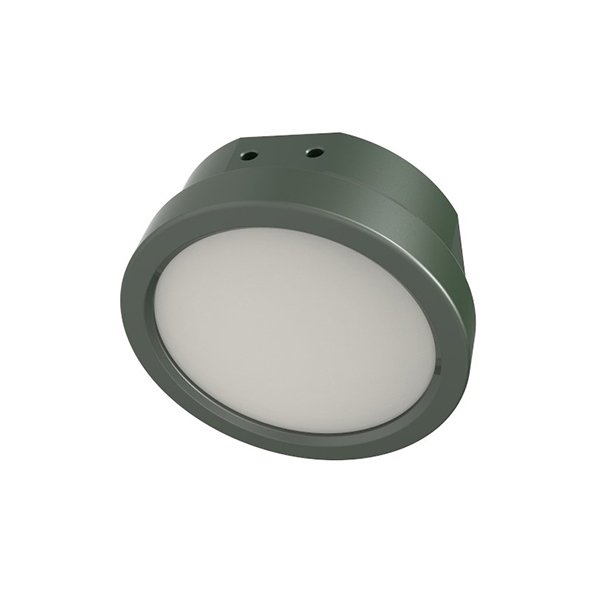

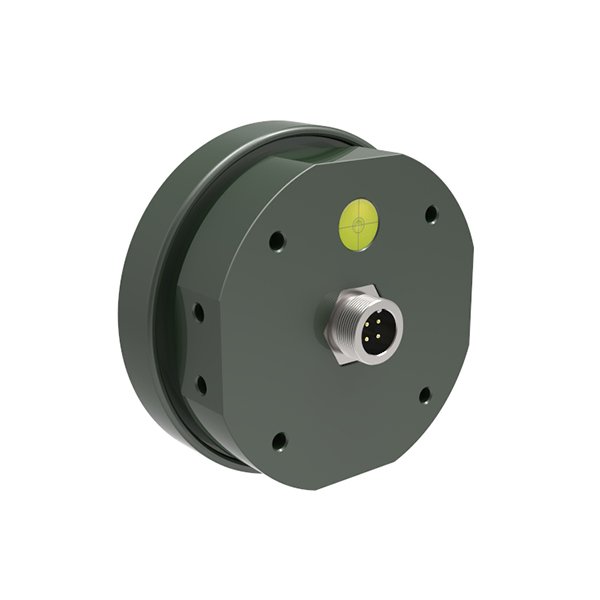

The radar level meter is specifically developed for hydrological monitoring. Utilizing FMCW technology and a non-contact design, it features a compact structure, high accuracy, low power consumption, and strong anti-interference capability. The device enables high-precision (millimeter-level), reliable, and easy-to-install water level monitoring. Equipped with optimized filtering software, it delivers more accurate and stable water level data compared to traditional radar level meters. It supports standard signal interfaces for connection with computers, PLCs, or display, recording, and control devices (e.g., RTUs), forming an all-weather water level monitoring system. It is widely applied in rivers, reservoirs, lakes, canals, and other natural water bodies.
Urban Drainage Network Level Monitoring
Power Plant Water Level Monitoring
Wastewater Treatment Plant Level Monitoring
Tailings Reservoir Level Monitoring
Reservoir Water Level Monitoring
River, Lake, and Groundwater Level Monitoring
| Parameter | Description |
| Model | LS LM-1RSZ3G |
| Measurement Range | 0.1~40m |
| Measurement Accuracy | ±2mm |
| Radar Antenna | FMCW frequency modulated continuous wave mode, microstrip array antenna with an independent replaceable lens antenna for focusing |
| Radar Frequency | 80GHz |
| Operating Voltage | 9~24VDC (default) |
| Operating Current | Operating mode, ≤30mA |
| Operating Temperature | -40~85℃ |
| Communication Type | RS485 MODBUS bus protocol communication |
| Digital Interface | R5485 (default) |
| Enclosure Material | Plastic housing |
| Beam Emission Angle | 6℃ |
| Size | φ66x96 mm |
| Weight | About 212G (excluding connecting wires) |
| Protection Grade | IP68 |
