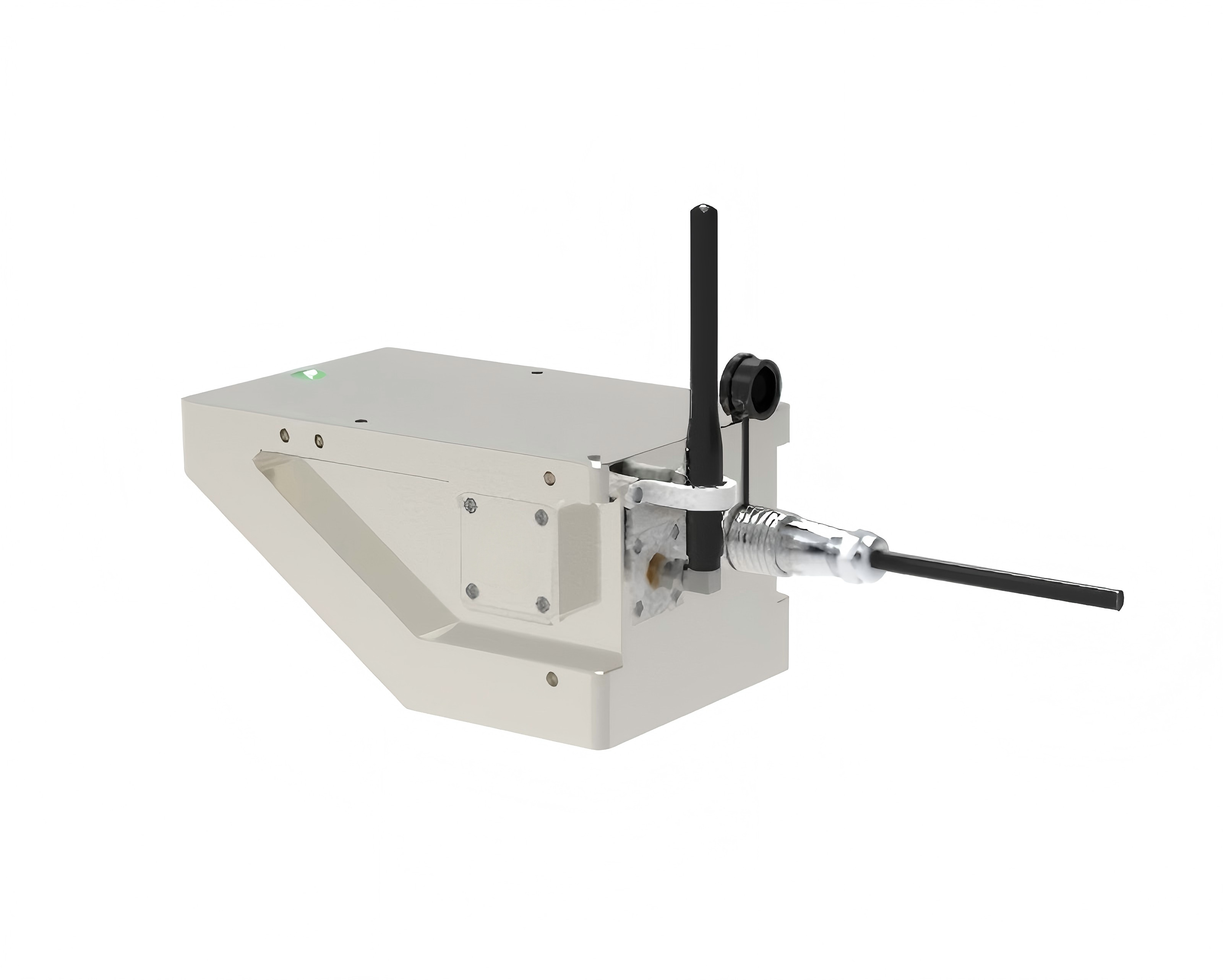

LS FMR-1SMTNG is a radar flowmeter based on millimeter-wave radar technology.
It adopts an advanced millimeter-wave planar radar antenna to measure water velocity and water level using a non-contact method.
Applying the velocity-area principle, the built-in hydrodynamic model and algorithms calculate and output both instantaneous and cumulative flow rates.
The measurement process is unaffected by ambient temperature, water surface vapor pressure, air dust, sediment, floating debris, or deposits.
A mobile app connects via Bluetooth for convenient on-site commissioning, configuration, and maintenance.
This flowmeter series can also be equipped with a built-in RTU function, enabling direct data transmission to a cloud platform via the integrated wireless communication unit, as well as remote configuration and firmware upgrades.
Measurement of velocity, water level, or flow in rivers, lakes, tidal areas, reservoir gates, ecological discharge flows, irrigation channels, and flash flood prevention sites.
Support for water treatment operations, such as urban water supply, sewage discharge monitoring, and box culvert outlets.
Flow calculation and monitoring of inflow and outflow volumes.
Suitable for various measurement conditions, capable of outputting velocity, water level, and flow data.
Compatible with multiple cross-section shapes, including trapezoidal, circular, and U-shaped, with simple and convenient parameter settings.
User-friendly configuration software allows easy parameter adjustments to meet different application requirements.
Supports expandable array-based multi-point velocity measurement — one flowmeter can be configured with multiple velocity sensors, with internal algorithms fitting the data to measure wide-section flows.
Features high integration, compact size, easy installation, and minimal maintenance requirements.
