Multi-parameter water quality analyzer

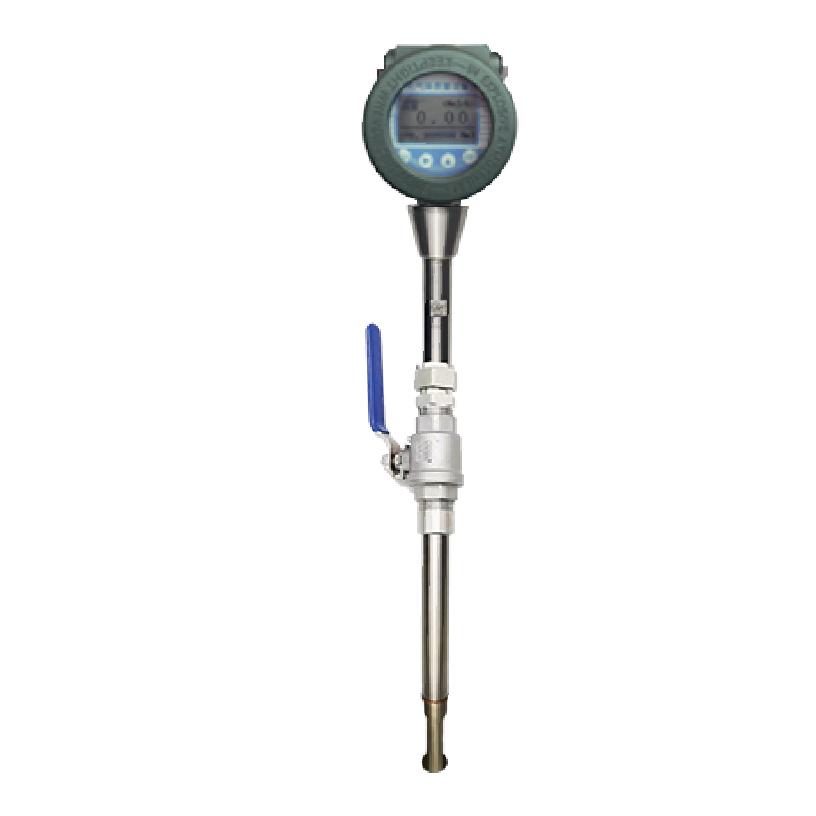

No Moving Parts, Maintenance-Free
Minimal Pressure Loss for Enhanced Energy Efficiency
Suitable for Various Gases and Gas Mixtures
Direct Measurement of Mass Flow, Flow Velocity, and Volume Flow
Accuracy up to ±1.0%, Turndown Ratio up to 1:1000
Thermal Measurement Principle with German-Made Sensors
Unaffected by Temperature and Pressure, No Temp/Pressure Compensation Required
Advanced DSP Digital Processing for Fast Response
Explosion-Proof, High-Temperature, and Corrosive Environments Environment Monitoring
| Model | LS FMM-1VMSOG |
| Precision | 1.50% |
| Repeatability | 0.20% |
| Maximum Range | 100Nm/s (up to 120Nm/s) |
| Lower Range Limit | 0.05Nm/s |
| Applicable Pipe Diameter Range | (p15-p1400, customizable for other diameters) |
| Applicable Pressure Range | <2Mpa, <10Mpa |
| Applicable Medium Temperature Range | -30-200°C (up to 450°C) |
| Sensor Material | 316L, 304 stainless steel |
| Probe Material (Protection Tube) | 304 stainless steel, 316L |
| Transmitter Housing Material | Die-cast aluminum |
| Instrument Power Supply | AC220V, AC110V, DC18-32V |
| Output | Output 4-20mA, RS232, RS485 |
| Local Display | 16 characters x 4 lines |
| Supply Type | Split type or integrated structure |
| Structural Type | Structural type insert and pipe type |
| Alarm | 2 channel relay, 3A/250V AC, 3A/30V DC |
| Protection Level | IP66 |
| Cable Outlet | M20x1.5 |
