No Throttling Components, Zero Pressure Loss
Intelligent Current Measurement Matching
Four-Electrode Design with Built-in Grounding Electrodes
Standard, Corrosive, and High-Temperature Environment Monitoring

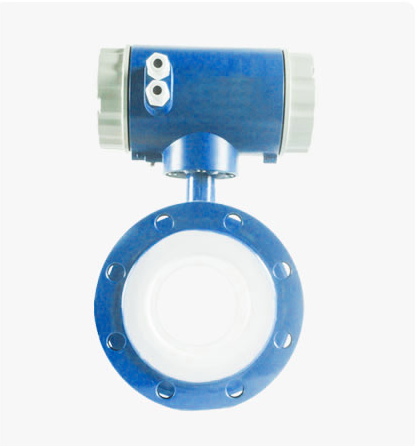

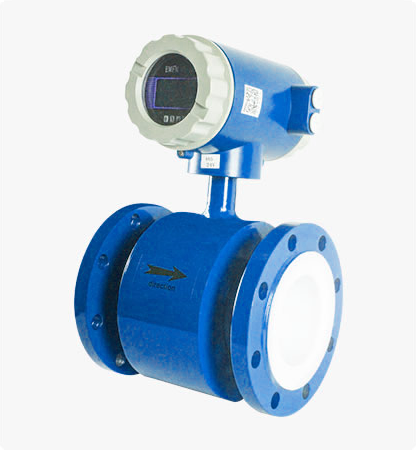

| Model | LS FME-1UMERG |
| Caliber | DN10-DN3200 mm |
| Excitation Method | Square Wave Constant Current Excitation |
| Installation Form | Integral Type, Split Type |
| Lining | Neoprene, Polyurethane Rubber, PTFE, F46 |
| Electrode Material | 316L, HC, HB, Titanium, Tantalum, Platinum Iridium, Tungsten Carbide |
| Grounding | Built-in Grounding Electrode (DN25 and above), Optional Ground Ring |
| Dielectric | Conductive Liquids |
| Accuracy Class | Class 0.2, Class 0.5 |
| Medium Conductivity | >5uS/cm |
| Flow Rate | <15m/s |
| Pipeline Connection Flange | GB9119-2000 or GB9115-2000 |
| Medium Temperature | Neoprene: -10°C to +60°C\nPolyurethane Rubber: -10°C to +80°C\nPTFE: -10°C to +120°C\nF46: -10°C to +150°C |
| Rated Pressure | 1.0MPa, 1.6MPa, 4MPa |
| Protection Level | IP65, IP68 |
| Signal Output | 4-20mA, Pulse Frequency, Upper/Lower Limit Alarm, HART, Modbus |
| Communication Output | RS485, RS232 (Optional), HART |
| Cable Connector | M20x1.5 |
| Display | Instantaneous Flow Rate, Flow Velocity, Percentage, Alarm, Forward/Reverse Totalized Flow |
| Power Supply | AC220V, DC24V, 3.6V Battery Power Supply |
| High Voltage | Customized |
