Multi-parameter water quality analyzer
Equipped with original imported chips and sensors for high accuracy and excellent stability.
Measurement accuracy: ±1%; accuracy after calibration: ±0.5%.
Clamp-on installation with a built-in battery for portability, enabling measurement anytime, anywhere.
Standard, Corrosive, and High-Temperature Environment Monitoring

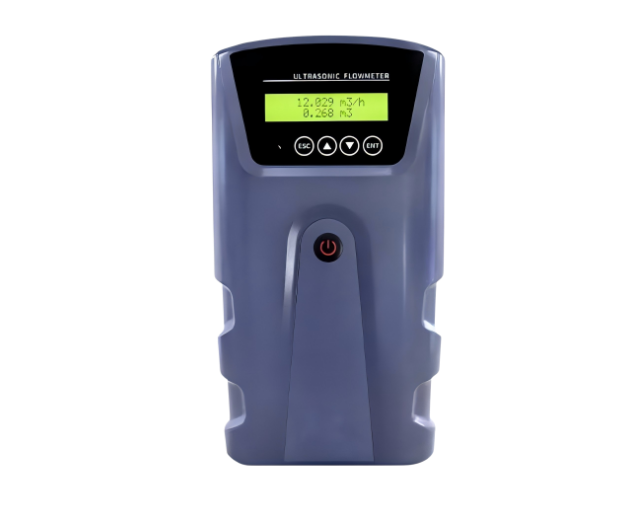

| Model | LS FMU-1TCEHG |
| Measurement Principle | Ultrasonic Time-Difference Method |
| Sensor Installation Method | External Clip-on |
| Suitable Fluids | Such as water, sea water, distilled water, alcohol, milk, oil, and other homogeneous liquids that ultrasonic waves can penetrate |
| Pipe Material | Metal pipes, non-metal pipes, lined pipes |
| Applicable Pipe Diameter | From 13mm to 6000mm (depending on the detector) |
| Fluid Temperature | -40 to +200°C (depending on the detector) |
| Flow Rate Measurement Range | 0 to ±32m/s (minimum ±0.3m/s) |
| Measurement Accuracy | ±1.0% of rate (after calibration ±0.5%) |
| Response Speed | 0.5s (standard), 0.2s (high-speed mode) |
| Display | Optional instantaneous flow, instantaneous velocity, cumulative flow, flow percentage, etc. |
| Analog Output | DC 4~20mA (optional) |
| Communication Function | RS-485 (Modbus RTU) |
| Power Supply | Built-in lithium battery, continuous operation for more than 12 hours |
| Charger Power | AC 220V |
| Communication Cable Length | 5 meters / 10 meters |
| Protection Grade | IP64 |
| Host Size | 232mmX130mmX64mm |
| Host Weight | Approximately 0.95kg |
| Other Functions | Capable of displaying instantaneous values and setting units, displaying cumulative values and setting units, damping time constant (0 to 100 seconds), zero adjustment (based on zeroing/clearing), low flow cut-off (0 to 5m/s), forward and reverse flow measurement, and receiving signal diagnostics |
