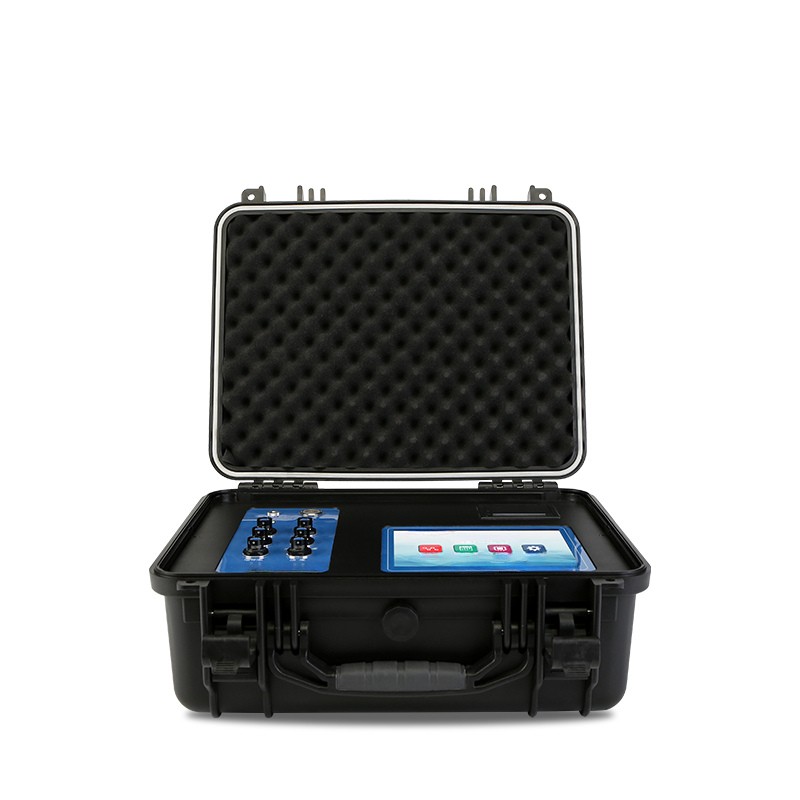

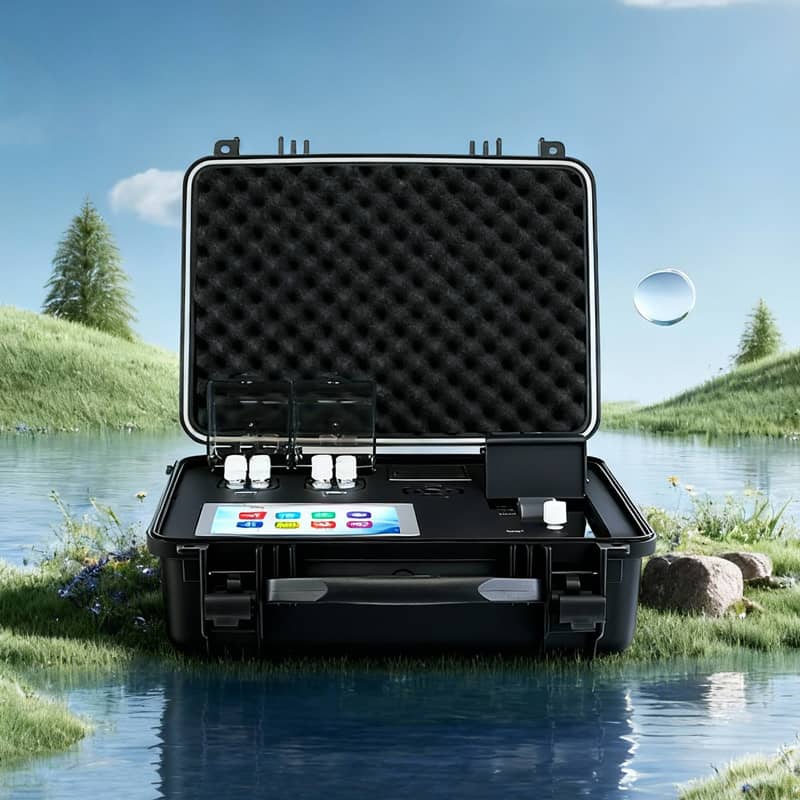

Multi-parameter water quality analyzer
Equipped with 4G communication and high-precision digital electrodes, this system enables real-time data transmission without chemical reagents—eco-friendly and pollution-free. Built to withstand harsh environments, it features a high-capacity lithium battery for extended field use.
●Multi-Parameter Measurement: Supports COD, TOC, Ammonia Nitrogen, Turbidity, Suspended Solids, Chlorophyll, Blue-Green Algae, Residual Chlorine, pH, Dissolved Oxygen, Temperature, Conductivity, ORP, TDS, and Oil in Water (customizable).
●User-Friendly Interface: 8-inch color touchscreen with built-in thermal printer for instant reporting.
●Long Battery Life: High-capacity rechargeable lithium battery ensures extended standby and field operation.
●Reagent-Free Technology: Sensor-based design requires no chemical reagents—eco-friendly, cost-effective, and easy to maintain.
●Ergonomic & Portable: Sleek, lightweight design for effortless transport and field use.
●Field-Ready Operation: Reliable in harsh outdoor environments; supports Chinese UI and simple, intuitive controls.
●High-Precision Digital Electrodes: Features full digital optical sensors with automatic temperature compensation for stable and accurate readings.
●Smart Optical Compensation: Digital optical sensors for COD, turbidity, suspended solids, chlorophyll, blue-green algae, and oil in water automatically adjust for light path attenuation and turbidity, ensuring precise measurements.
COD, TOC, Ammonia Nitrogen, Turbidity, Suspended Solids, Chlorophyll, Blue-Green Algae, Residual Chlorine, pH, Dissolved Oxygen, Temperature, Conductivity, ORP, TDS, Oil in Water (customizable)
| Model | LS PA-1EDZ2G |
| Electrode Type | High-precision digital detection electrode |
| Project Name | Chemical Oxygen Demand (COD), Total Organic Carbon (TOC), Ammonia Nitrogen, Turbidity, Suspended Solids, Chlorophyll, Cyanobacteria, Free Chlorine, pH, Dissolved Oxygen, Temperature, Conductivity, Oxidation Reduction Potential (ORP), Total Dissolved Solids (TDS), Oil in Water (Customizable items) |
| Screen Size | 8-inch Color Touch Screen |
| Dual Power Supply | Built-in Lithium Battery, Adapter DC12V |
| Electrode Wire Length | 3-5 meters |
| COD Measurement Range | 0-500mg/L (Ultraviolet Digital Electrode); Total Organic Carbon (TOC) Measurement Range 0-300mg/L (Ultraviolet Digital Electrode); Ammonia Nitrogen Measurement Range 0-1000mg/L; Chlorophyll Measurement Range 0-500μg/L (Fluorescence Digital Electrode) |
| Blue-Green Algae Measurement Range | 0-100μg/L (Fluorescence Digital Electrode); Suspended Solids Measurement Range 0-3000mg/L; Turbidity Range 0-1000NTU |
| Storage | 1 million data points |
| Printing | Built-in Thermal Printer |
| Interface | USB Port, 4G Communication Module, GPS Module (Optional) |
| System | Water Quality Detection System |
| Battery | Built-in Large Capacity Lithium Battery |
| Instrument Size | (463*360*192) mm |
| Protection Level | IP68 |
| Operating Temperature | 0～50℃ Temperature Range, 20～80% Humidity |
| Instrument Net Weight | 3.5Kg |
| Accessories Box | Dedicated Waterproof Accessory Case |
