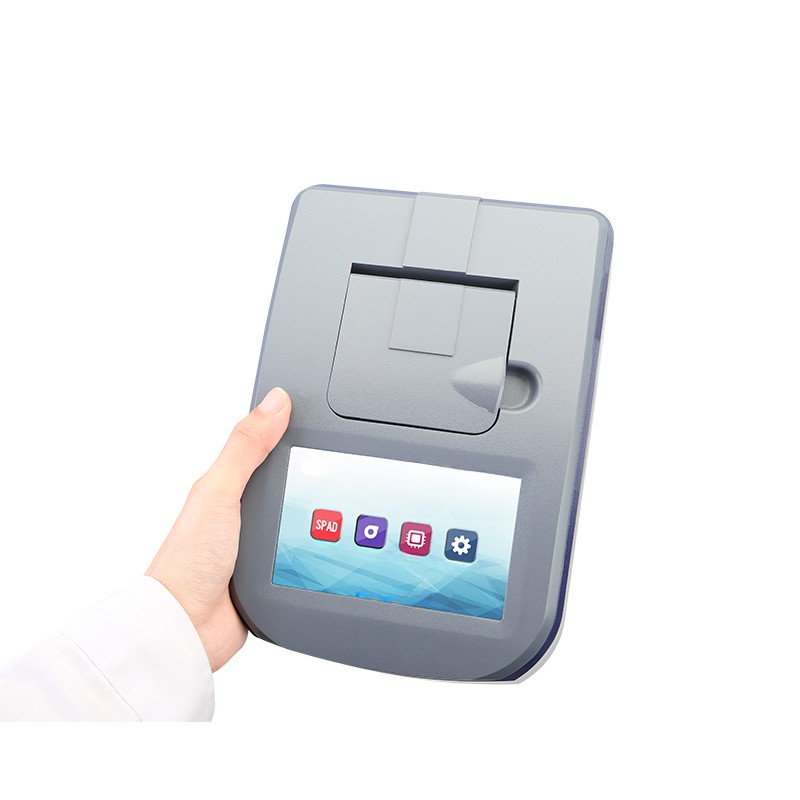

Multi-parameter water quality analyzer
Utilizing fluorescence detection technology, this compact handheld device is ideal for rapid on-site field measurements. Featuring a dual-channel design, it simultaneously measures chlorophyll-A and turbidity, with automatic turbidity compensation to enhance accuracy—delivering faster and more precise results.
●Utilizes advanced fluorometric detection technology.
●On-site calibration supported—no need for regular factory recalibration.
●Disposable test tubes for single use—no cleaning required, fast and convenient.
●Dedicated dual-channel design with one-touch switch between two measurement modes.
●Equipped with a calibration module for quick and easy calibration.
●Built-in high-capacity lithium battery, standby time exceeds one month.
●Turbidity compensation function eliminates interference for accurate results.
●Measures ambient temperature and light intensity to monitor environmental factors affecting chlorophyll.
●5-inch touch screen with four intuitive function modules—simple one-touch operation.
●Compact test tubes minimize interference from the cuvette, enhancing measurement accuracy.

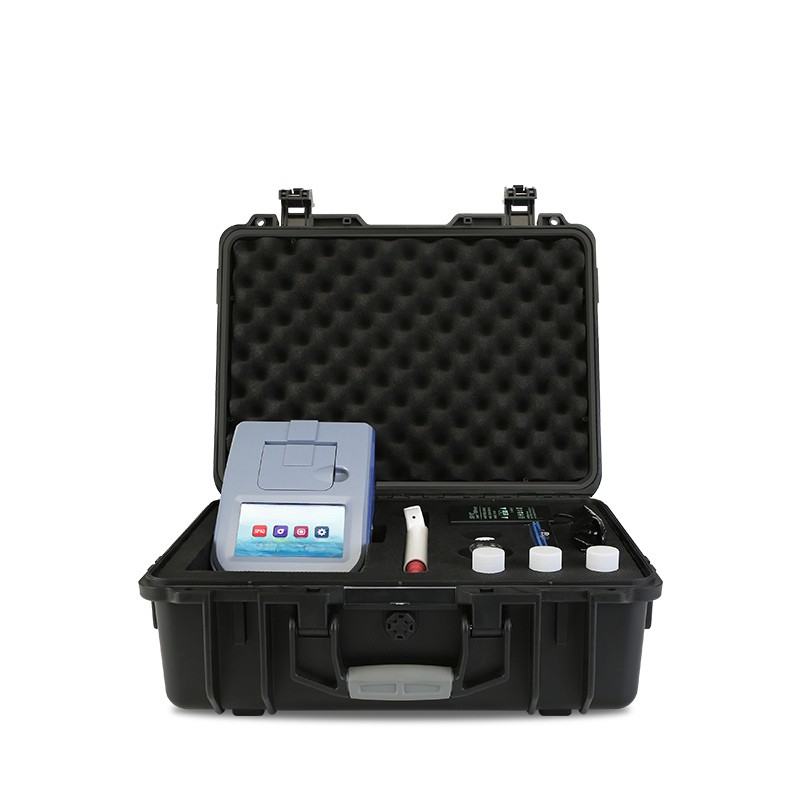

●Comes with a portable testing kit for complete on-site analysis.
Living Chlorophyll
| Model | LS PACHL-1FDNOG |
| Measurement Time | 5 seconds |
| Inspection Item | Living Chlorophyll |
| Warm-up Time Before Startup | 5 seconds |
| Detection Range | 0-500 ppb |
| Display | 5-inch touch display screen, 4 touch sensing function modules |
| Detection Limit 0.5ppb | 0.5ppb |
| Built-in thermal printer for printing current and historical data at any time | |
| Sample Tube | Dedicated 10mm square test tube |
| Auto Sleep Sleep after 5 minutes of inactivity | Sleeps after 5 minutes of no operation |
| Measurement Accuracy | 5% |
| Detector Fluorescence Detector (Measurement Range 300～1000nm) | Fluorescence detector (detection range 300~1000nm) |
| Dimensions | 231mm×160mm×89mm |
| Data Storage | Can store 1,000,000 sets of data, which can be freely accessed and viewed |
| Data Transfer | Equipped with USB interface and serial port transmission function, capable of transferring data to PC |
| System | Built-in lithium battery or DC12V adapter |
| Operating Environment | 5-50℃ |
| Power Supply | Built-in lithium battery or DC12V adapter |
