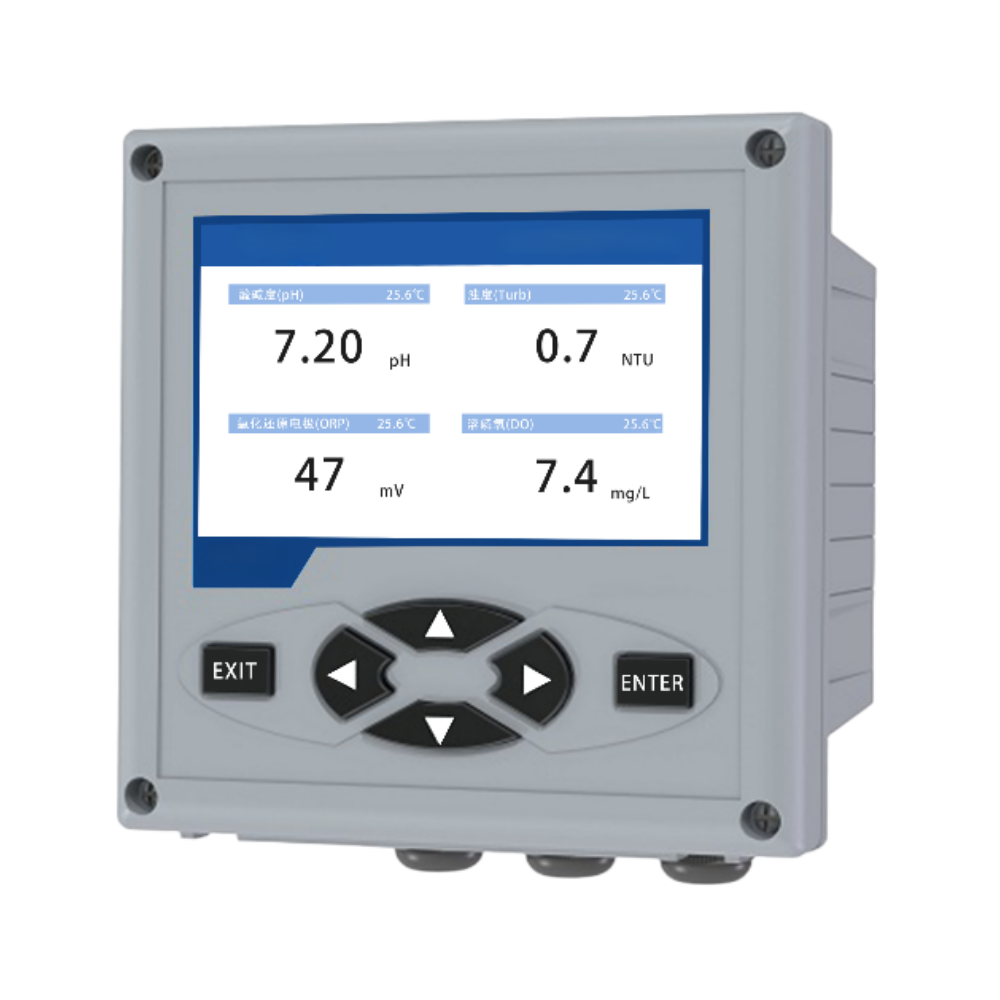

Multi-parameter water quality analyzer
The water quality analyzer controller automatically recognizes connected sensors and provides real-time display of measurement values and electrode status. It supports electrode calibration, data storage, and transmission. With a user-friendly interface and intuitive operation, it allows even non-specialists to operate it with ease.
●Multi-parameter integration reduces installation space requirements while enhancing on-site maintenance efficiency
●Fully compatible with the entire sensor series; supports flexible configuration of up to four sensors to meet diverse process needs
●Automatic sensor recognition with hot-swappable support allows maintenance without powering down, improving operational convenience
●Six isolated and calibratable 4–20 mA analog outputs, programmable to correspond to any measurement parameter for precise PLC integration
| Model | LS OC-1MDZ2 |
| Product Name | Multi-channel Multi-parameter Transmitter |
| Measurement Channel | 2 or 4 channels |
| Power Supply Voltage | 100~240VAC±10%, 50/60Hz, 15VA |
| Analog Output | 6-channel isolated 4~20mA, maximum load 500Ω |
| Relay | 6 groups of single-pole single-throw mechanical relays, 250VAC or 30VDC, 3A |
| Digital Output | RS485 (standard MODBUS communication protocol) |
| Display | TFT 5-inch color LCD, 800X480 (pixels) |
| Storage Ambient Temperature | -40~70℃ |
| Operating Ambient Temperature | -10~50°C |
| Relative Humidity | 0~95%, no condensation |
| CE Mark | ECU-KKIC-UJND-787 |
| Installation Method | Wall-mounted/piped-mounted/din-rail mounted |
| Instrument Size | 150mm*150mm*135mm (H*W*D) |
| Cutout Size | 140mm*140mm (H*W) |
| Weight | 0.85kg |
| Material | ABS |
| Protection Rating | IP65 |
