BWS-MP multi-parameter water quality analyzer

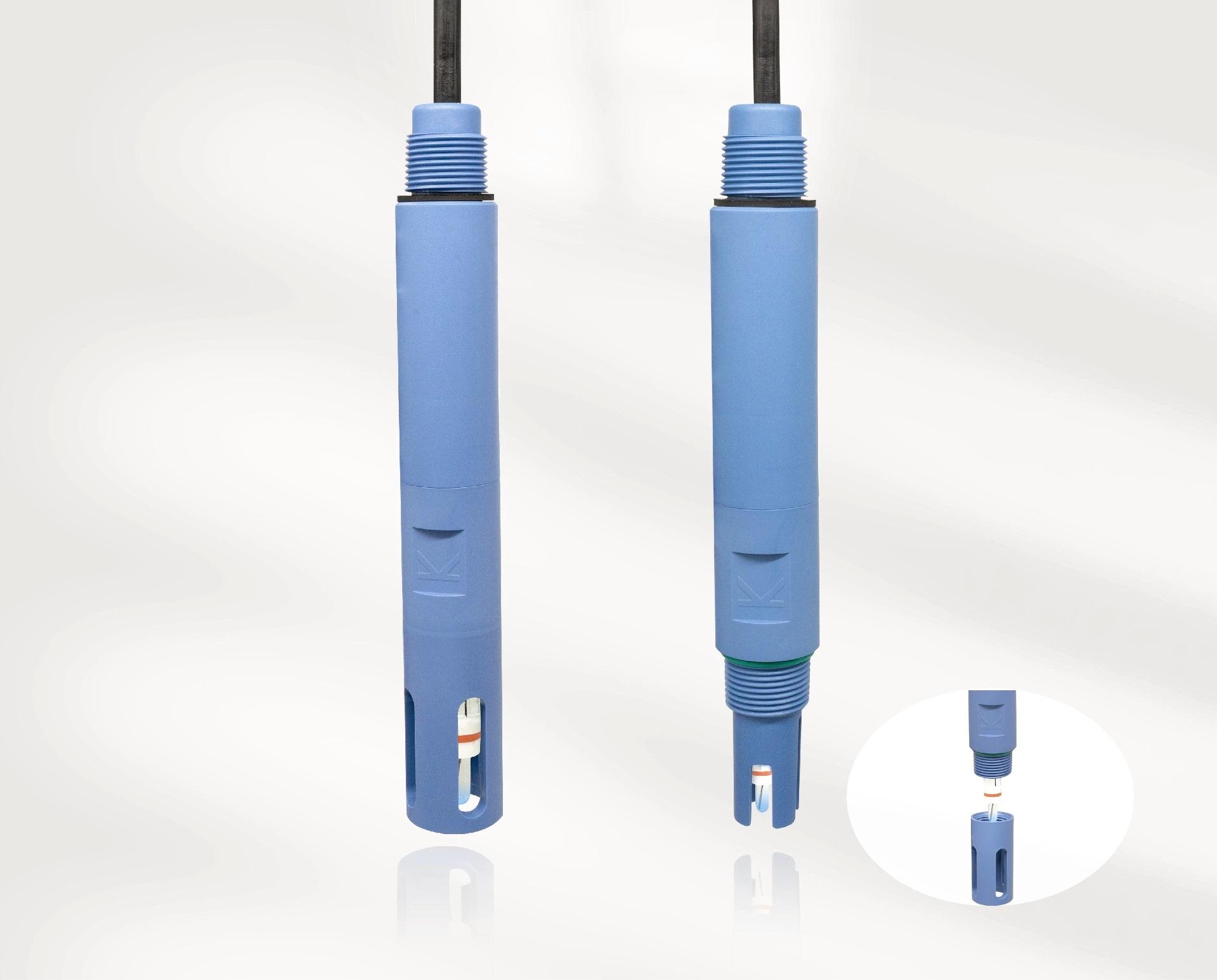

The online pH sensor adopts the glass electrode method with a corrosion-resistant housing. It features a built-in NTC temperature sensor for automatic temperature compensation and communicates via RS485 using the standard Modbus protocol.
●Dual Salt Bridge Design: Strengthens resistance to reference electrolyte contamination and extends service life
●Ceramic Reference Junction: Slows KCl diffusion to prolong operational lifespan
●Oil-Based Internal Reference: Reduces the risk of clogging at the junction interface
●Thick, High-Impedance Bulb: Reinforced structure resists breakage from particle impact
●PPS Housing: Excellent corrosion and high-temperature resistance
●Front Thread with Protective Sleeve: Impact-resistant during immersion installation and maintenance
●Rear 3/4" NPT Waterproof Thread: Enables secure sealing without PTFE tape for immersion use
●IP68 Protection Rating: Minimizes damage from harsh environments and handling errors
Fluoride Detection
Glass; PPS
| Parameter | Technical Specification |
| Working Principle | Glass Electrode Method |
Model |
LS PH-1EAF1G |
| Measuring Range | pH：0~12 |
| Precision | ±0.1 pH |
| Operating Temperature | -5 to 80°C |
| Response Time | 30s |
| Protection Rating | IP68 |
| Dimensions | L:220mm; φ:32mm |
| Material | Glass; PPS |
| Weight | 310g / 290g (with 3m cable) |
| Cable Length | Integrated cable (3m / 10m optional) |
| Operating Voltage | 12V DC |
| Power Consumption | <1W |
Thread Interface |
3/4" NPT (rear end) |
Reference Junction |
Dual ceramic / PTFE |
Reference Electrolyte |
KCl gel |
Optional Feature |
Solution ground (-SG) |
Pressure Resistance |
3 bar @ 25°C |
| Operating Temperature | -5°C to 80°C |
| Storage Temperature | -10°C to 50°C |
