BWS-MP multi-parameter water quality analyzer

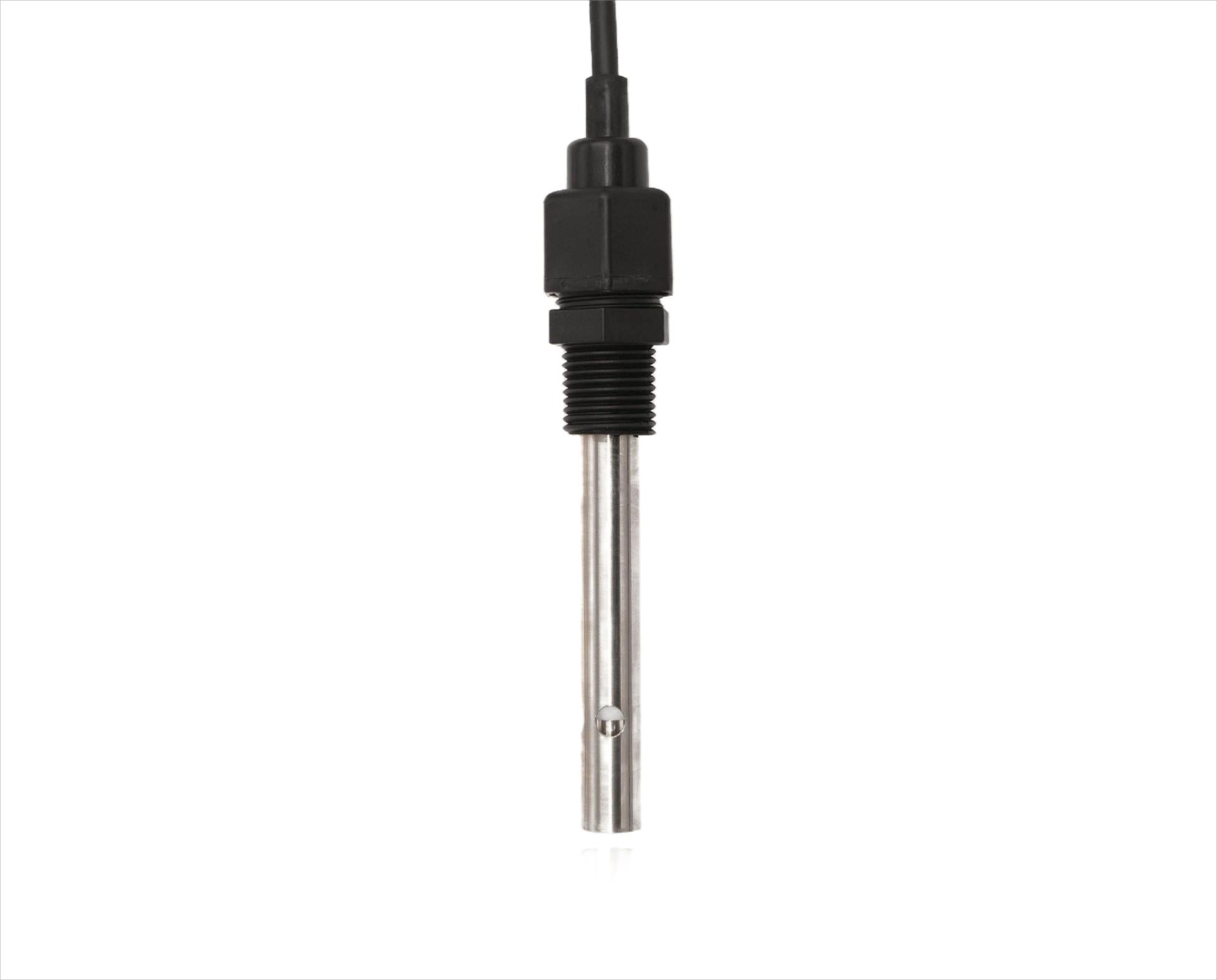

The online conductivity sensor features a built-in NTC temperature sensor and compensation algorithm, automatically correcting temperature-induced measurement variations. It communicates via RS485 interface with standard Modbus protocol.
Suitable for purified water and recirculating water monitoring.
●Immune to ion cloud interference for reliable readings
●Stainless Steel Body: High resistance to fouling and contamination
●High Accuracy & Linearity: Cable impedance does not affect measurement precision
●Consistent Cell Constant: Each sensor calibrated to ~0.05 with excellent consistency
Parameter |
Technical Specification |
| Model | LS EC-EAGHG |
Measuring Range |
1000 μS/cm-20MΩ.cm |
Coefficient |
C=0.05cm-1 |
Accuracy |
±1% |
Operating Environment |
(-10~80)℃ |
Withstand voltage |
7bar@25°C |
Connection Method |
Built-in cable (3m/10m/20m) |
Electrode Material |
316L |
Application Medium |
Pure water/RO water |
