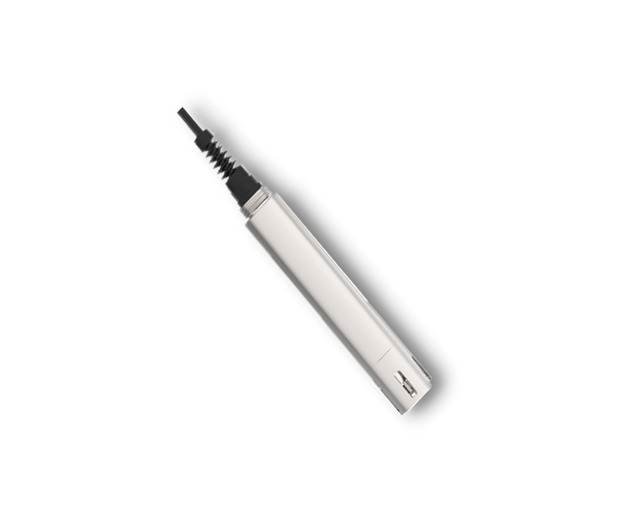

BWS-MP multi-parameter water quality analyzer
●This product can measure the PH value and temperature value of the liquid in real time.
●Industrial-grade composite pH electrode for harsh environments.
●NTC temperature sensor (±0.1°C accuracy).
●Modular sensor configuration supporting flexible combinations, featuring simple installation and low-maintenance design.
●Corrosion-resistant IP68 housing for submersible operation.
●RS485 interface with Modbus protocol for system integration.
| Parameter | Technical Specification |
| Working Principle | Glass Electrode Method |
| Measuring Range | pH (0~14) ;Temperature:（0~50）℃ |
| Precision | ≤0.1 pH |
| Indication Error | ±0.1 pH |
| Drift | ±0.1 pH |
| Temp. Compensation Accuracy | ±0.1 pH |
| Resolution | 0.01pH |
| Response Time | <10s |
| Protection Rating | IP68 |
| Dimensions | φ33×224 mm, 10m cable (Customizable) |
| Material | 316L Stainless Steel/PVC/Titanium Alloy (Optional) |
| Weight | 0.5kg |
| Installation Thread | Upper End: NPT 3/4 Thread; Lower End: Compatible with NPT 3/4 External Thread |
| Operating Voltage | （9~36）V DC |
| Power Consumption | 0.2 W |
| MTBF | ≥1440 hours/instance |
| Calibration Cycle | 3~6months |
