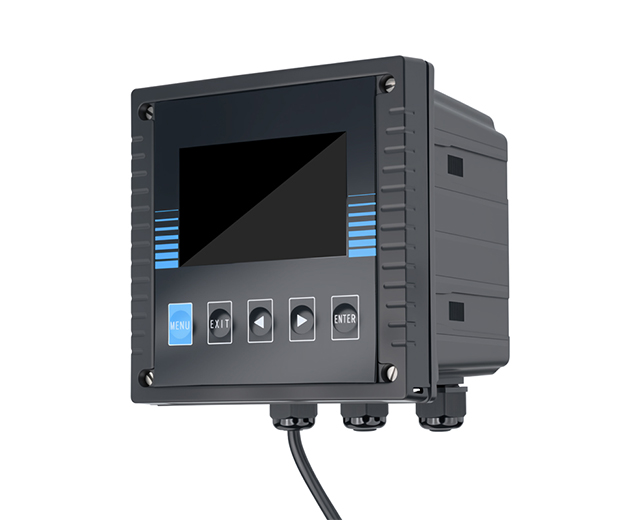

Multi-parameter water quality analyzer
The LINKSENS C-MT011 water quality analyzer controller supports our digital/analog online water quality sensors and has complete external interfaces, which can easily realize functions such as sensor networking, remote control, and fault diagnosis.
Supports digital/analog online water quality sensors, plug and play
Employs an industrial-grade 4-inch 800*480 high-resolution TFT color screen
Supports RS485 MODBUS protocol for networked monitoring
Supports 4-20mA analog output and relay control output
| Model | C-MT011A | C-MT011B | C-MT011C | C-MT011D | C-MT011E |
Supported Sensor Quantity |
1-channel analog sensor |
1-channel digital sensor |
1-channel analog sensor |
2-channel digital sensor |
4-channel digital sensor |
1-channel digital sensor |
|||||
Display |
4-inch industrial-grade color TFT display (800*480 resolution) |
||||
Size |
144mm*144mm*115mm |
||||
Power Supply |
220VAC（Maximum power<2.5W） |
||||
Storage Temperature |
(-20～70)℃ |
||||
Operating Temperature |
(-10～60)℃ |
||||
Housing Material |
Controller: ABS; Sensor:PP/POM |
||||
Protection Rating |
Controller: IP55; Sensor:IP68 |
||||
Analog Output |
2-channel 4-20mA analog output, maximum load 500 ohms |
/ |
|||
Relay Output |
3-way SPDT relay(250VAC,30VDC/5A) |
||||
External Communication Output |
1 channel RS485Modbus |
||||
