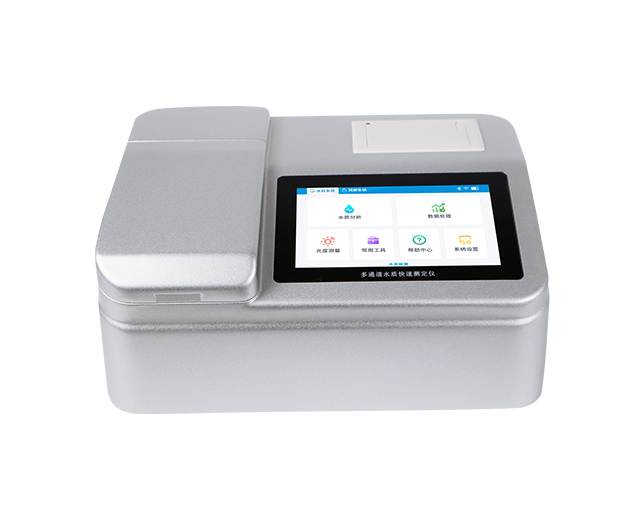

The K-X001 Intelligent Multi-Parameter Water Quality Analyzer features an industrial-grade 7.0-inch high-definition touch screen, offering intuitive data visualization and a compact design. It meets the detection needs for water pollutants across various industries, supporting over 70 parameters including COD, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, suspended solids, and more. It is widely applicable in environmental monitoring, pollution control, scientific research, river monitoring, wastewater monitoring, aquaculture, and other water quality fields.
Supports over 70 detection parameters including COD, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, etc.
Built-in smart network and cloud platform for remote real-time viewing, editing, and statistical analysis.
Features user account and permission management for operator access control and settings.
360° rotation + multi-point cold light excitation system, improving stability by over 10 times.
Utilizes a self-developed YCOS Intelligent Water Quality Detection System for smooth and stable operation.
More environmentally friendly and efficient detection methods; saves up to 30% more reagent compared to other brands.
Guided operation with prompts to avoid user errors; no professional expertise required, making detection simpler.
Compatible with a 30-well dual-temperature zone intelligent digester for fast heating and high temperature control accuracy.
7-inch industrial HD touch screen with intelligent UI for clear operation and an enhanced user experience.
Over 98% of factory-provided reagents are pre-prepared liquid reagents, ready for direct use.
Parameter |
Specification |
Data Transmission |
USB, WiFi, Bluetooth, 4G (Optional) |
Measurement Error |
≤ ±3% |
Data Printing |
Built-in thermal printer |
Repeatability Error |
≤ ±2% |
Data Processing |
5 million data points, 20,000 curves |
Wavelength Accuracy |
±1 nm |
Location |
GPS/BeiDou |
Optical Stability |
≤ ±0.001A/20 min (100,000-hour lifespan) |
Display |
7-inch HD Industrial Touch Screen |
Colorimetry Method |
360° Rotation + Multi-point Cold Light Excitation |
Operating Environment |
5-45°C, ≤85% RH (Non-condensing) |
Wavelength Calibration |
Automatic Calibration |
Power Supply |
12V 3A |
Detection Light Source |
Imported Solid-State Cold Light Source |
Power Requirements |
100-240V, 50-60Hz |
Data Display |
Concentration, Transmittance (%), Absorbance (A) |
Operating System |
LINKSENS Self-developed System |
Dimensions & Weight |
345*250*165 mm, 3.2 kg |
No. |
Parameter |
Measurement Range |
Detection Limit |
01 |
COD |
0-15000 mg/L |
5 mg/L |
02 |
Ammonia Nitrogen (NH₃-N) |
0-50 mg/L |
0.05 mg/L |
03 |
Total Phosphorus (TP) |
0-16 mg/L |
0.02 mg/L |
04 |
Total Phosphorus (Vanadomolybdate Method) |
1-100 mg/L |
1 mg/L |
05 |
Total Nitrogen (TN) |
0-100 mg/L |
0.5 mg/L |
06 |
Turbidity |
0-1000 NTU |
0.5 NTU |
07 |
Suspended Solids (SS) |
0-500 mg/L |
5 mg/L |
08 |
Color |
0-500 PCU |
5 PCU |
09 |
Hexavalent Chromium (Cr⁶⁺) |
0-5 mg/L |
0.05 mg/L |
10 |
Total Chromium |
0-5 mg/L |
0.05 mg/L |
11 |
Copper (Cu) |
0-50 mg/L |
0.05 mg/L |
12 |
Nickel (Ni) |
0-4 mg/L |
0.1 mg/L |
13 |
Zinc (Zn) |
0-10 mg/L |
0.05 mg/L |
14 |
Iron (Fe) |
0-50 mg/L |
0.50 mg/L |
15 |
Silver (Ag) |
0-10 mg/L |
0.05 mg/L |
16 |
Antimony (Sb) |
0-10 mg/L |
0.1 mg/L |
17 |
Manganese (Mn) |
0-5 mg/L |
0.05 mg/L |
18 |
Phosphate |
0-20 mg/L |
0.02 mg/L |
19 |
Sulfate |
0-100 mg/L |
5 mg/L |
20 |
Sulfide |
0-4 mg/L |
0.01 mg/L |
21 |
Cyanide |
0-1 mg/L |
0.01 mg/L |
22 |
Fluoride |
0-7.5 mg/L |
0.02 mg/L |
23 |
Nitrate Nitrogen |
0-20 mg/L |
0.5 mg/L |
24 |
Nitrite Nitrogen |
0-1 mg/L |
0.002 mg/L |
25 |
Permanganate Index (CODMn) |
0-10 mg/L |
0.1 mg/L |
26 |
Residual Chlorine |
0-10 mg/L |
0.1 mg/L |
27 |
Total Chlorine |
0-10 mg/L |
0.1 mg/L |
28 |
Chlorine Dioxide |
0-10 mg/L |
0.05 mg/L |
29 |
Silica |
0-5 mg/L |
0.1 mg/L |
30 |
Volatile Phenol |
0-10 mg/L |
0.1 mg/L |
31 |
Arsenic (As) |
0-0.5 mg/L |
0.02 mg/L |
