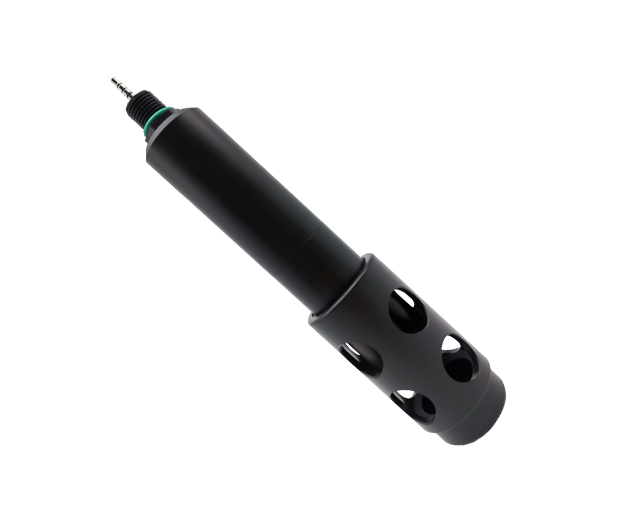

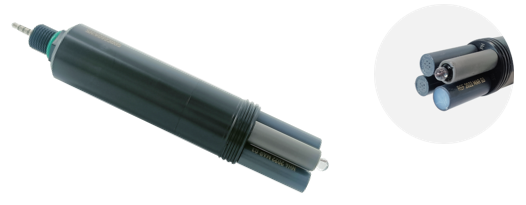

LINKSENS online ISE (NH4+ pH NO3-) sensor with integrated digital electronics for plug and play capability with LINKSENS multi-parameter sonde platform and IP68 connector to any PLC or RTU. It has a unique design that incorporates a user-replaceable electrode tip (module) and a reusable sensor base that houses the processing electronics. This allows users to reduce the costs and easy to maintain.
• Polymer membrane ISE ammonium (NH4+ and NO3-)electrode.
• a potassium chloride (KCl) solution reference.
• Isolator and NTC10K inside, easy to use.
• User-replaceable ammonium, nitrate, pH, reference electrode, reusable sensor base.
• RS485 output, Modbus protocol.
• IP68 connector.
• All parts designed and made by Broadsensor including ISE.
Note: Freshwater application only.
| Measurement Method | Polymer membrane ISE electrode, glass pH and KCL reference |
| Range | 0.15-1000ppm NH4 +/0-14 pH/-0.15-1000ppm NO3 - |
| Resolution | 0.01ppm/0.01pH/1mV/0.01ppm |
| Accuracy | NH4-N and NO3-N 5% reading or 2ppm w.i.g ± 0.2pH |
| Operating temperature | 5~45℃ |
| Storage Temperature | -10~50℃ |
| Min. Detection Limit | 0.05ppm |
| Warranty | 1 year(sensor base ), 3 months (electrode) |
| Depth | IP68, 10m Max |
| Power | DC 5V ±5%(default) DC12-24(optional), 0.5W(normal) |
| Output | RS485 and Modbus RTU |
| Materials | PVC |
| Dimensions | Length 186mm, diameter 35.3mm |
| Flow rate | < 3 m/s |
| Response time | Minimum 45s T90 |
| Field life* | Sensor base 2 years or greater, NH4 +/NO3- 6 months, pH/Ref electrode 12 months or greater |
| Recommended Calibration maintain Frequency * | NH4+/NO3- 2-3 weeks, pH/Ref 4-8 weeks |
| NH4+/NO3- 2-3 weeks, pH/Ref 4-8 weeks | |
