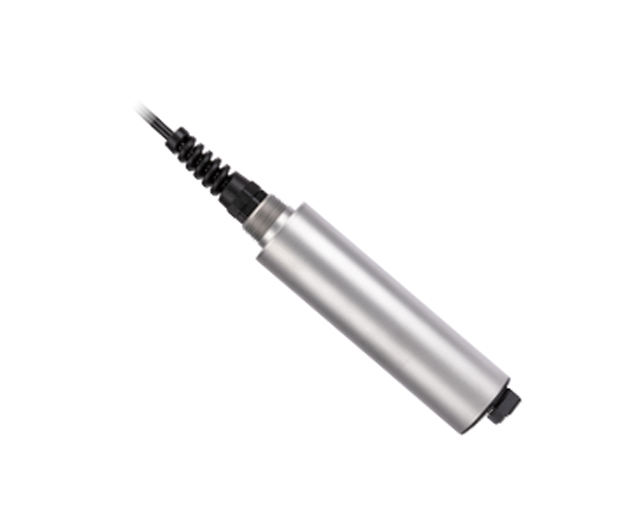

Suspended Solids Sensor

The online suspended solids sensor is a water quality online analysis instrument developed based on a 90-degree scattering optical water quality analysis platform. It features an integrated design, adopts the ISO7027 standard method, and incorporates digital and intelligent sensor design concepts, enabling it to automatically compensate for the effects of voltage fluctuations, device aging, and temperature changes on measured values.

· Employs unique optical and electronic filtering technology

· Built-in temperature sensor for real-time temperature compensation

Widely used in surface water, pollution sources and other industries.

Measurement parameters	Suspended solids, temperature
Measurement methods	90°C Infrared scattering method
Range	Suspended solids: (0～20000) mg/L Temperature: (0～60)°C
Accuracy	≤±5%
Repeatability	≤3%
Resolution	0.1mg/L
Response Time	≤5s
Drift	≤±3%F.S.
Temperature Range	(0～60)℃
Protection Rating	IP68
Communication Method	RS485(ModbusRTU)
Power Supply Voltage/Power Consumption	(12-24)VDC / ＜0.3W
Material	Titanium alloy/stainless steel, POM
Dimensions	127mm×φ28mm
