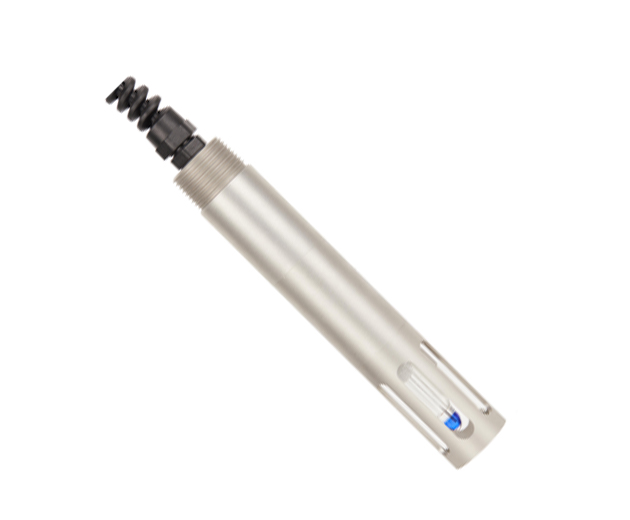

The S-pH001 online pH sensor is developed based on a digital water quality analysis platform and features an integrated design. It employs industrial online electrodes and a digital, intelligent sensor design concept.
◆ Dual salt bridge online industrial electrode, strong anti-contamination capability
◆ Built-in temperature sensor, real-time temperature compensation
◆ IP68 waterproof rating, suitable for various working conditions
It is widely used in industries such as surface water and pollution source analysis.
| Model Number | S-pH001 |
| Measurement Parameters | pH, Temperature |
| Measuring Range | pH: 0～14,Temperature: (0～60)℃ |
| Accuracy | ≤±0.1pH |
| Repeatability | ≤±0.1pH |
| Resolution | 0.01pH |
| Response Time | ≤10s |
| Drift | ≤±0.1pH |
| Temperature Compensation Accuracy | ≤±0.1pH |
| Temperature Range | (0～60)℃ |
| Protection Class | IP68 |
| Communication Method | RS485 (Modbus RTU) |
| Power Supply Voltage/Power Consumption | (12-24)VDC/＜0.3W |
| Material | Titanium Alloy/Stainless Steel, POM |
| Dimensions | 162mm×φ28mm |
