Multi-parameter water quality analyzer

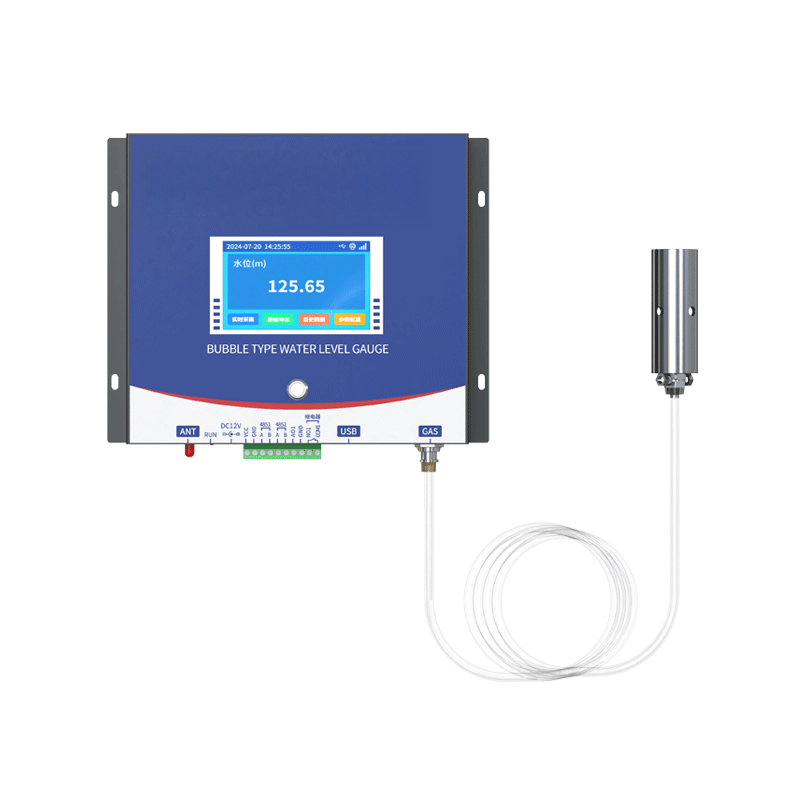

The bubble-type water level meter features a 4.3-inch color touchscreen for real-time data display and parameter adjustment. Configuration can also be done conveniently via Bluetooth using our mobile app. Designed for flowing water bodies and rivers of various scales, it supports large-depth measurements without the need for wells—ideal for areas where well construction is difficult or costly.
Suitable for General Water Monitoring
Proprietary CMOS mmWave RF Chip – Compact RF architecture with higher SNR and minimized blind zone.
Wide Operating Bandwidth – Ensures superior measurement resolution and accuracy.
Narrow 8° Antenna Beam Angle – Reduces environmental interference and simplifies installation.
Integrated Lens Design – Compact form factor for easy mounting.
Low Power Consumption – Extended service life and reliable long-term operation.
| Model | LS WL-1PCNOG |
| Power Supply | 12V 8A |
| Maximum Power | 68W |
| Average Power | 2.5W (default acquisition interval 10min) |
| Range | 0~80m, customizable |
| Transducer Operating Temperature and Humidity | Temperature -20℃-60℃; Humidity <95%RH, no condensation |
| Air Tube Size | φ6*4mm |
| Resolution | 1mm |
| Measurement Accuracy | ±0.05%FS |
| Analog Output | 4-20mA |
| Master/Slave RS485 Interface | Using 0.5 square RVV cable, the longest communication distance can reach 2000m |
| Acquisition Interval | 5~60min, default 10min |
| Wireless Communication | Upload data via 4G |
| Specification Size | 220*200*61mm |
