Multi-parameter water quality analyzer

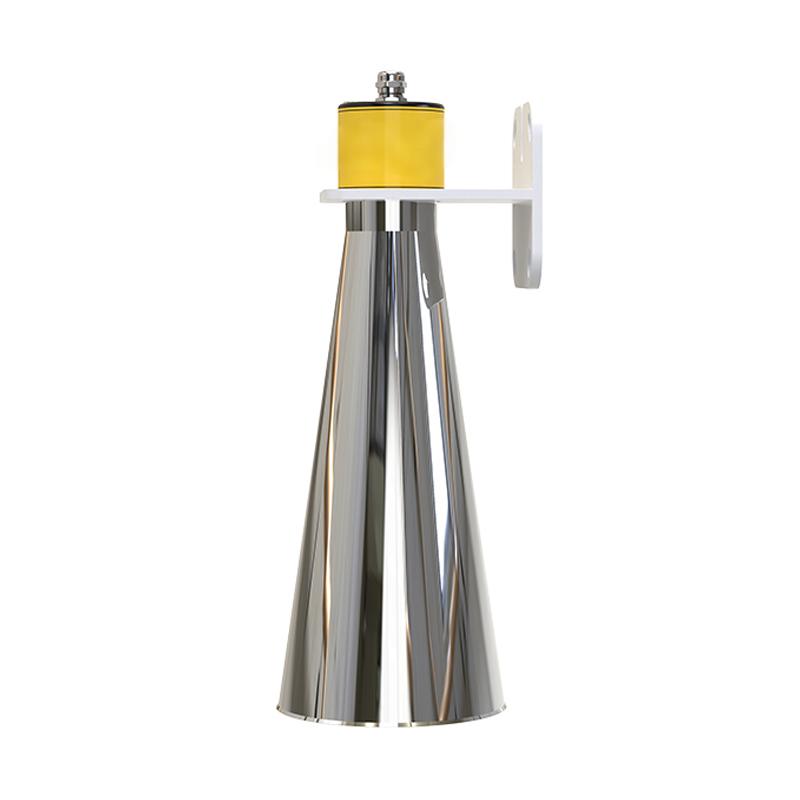

The radar level transmitter operates on 77–79 GHz FMCW technology, delivering long-range measurement up to 70m with a blind zone less than 10cm. Its higher operating frequency and wider bandwidth ensure superior measurement accuracy. The product supports bracket-mounted installation and is fully compatible with our hydrological monitoring poles and data acquisition units.
Suitable for General Water Monitoring
Proprietary CMOS mmWave RF Chip – Compact RF architecture with higher SNR and minimized blind zone.
Wide Operating Bandwidth – Ensures superior measurement resolution and accuracy.
Narrow 8° Antenna Beam Angle – Reduces environmental interference and simplifies installation.
Integrated Lens Design – Compact form factor for easy mounting.
Low Power Consumption – Extended service life and reliable long-term operation.
| Model | LS WL-1RSNOG |
| Power Supply | DC10-30V |
| Maximum Power Consumption | 0.6W |
| Transmission Frequency | 77GHz~79GHz |
| Measurement Range | 0.15 m ~65m |
| Resolution | 1mm |
| Measurement Accuracy | ±1mm@(4m, 40%RH, 25℃) |
| Beam Angle | 8° |
| Transducer Component Temperature and Humidity Resistance | -40℃~+80℃, 0%RH~95%RH (non-condensing) |
| Communication Protocol | RS485 output |
| Protection Rating | IP67 |
