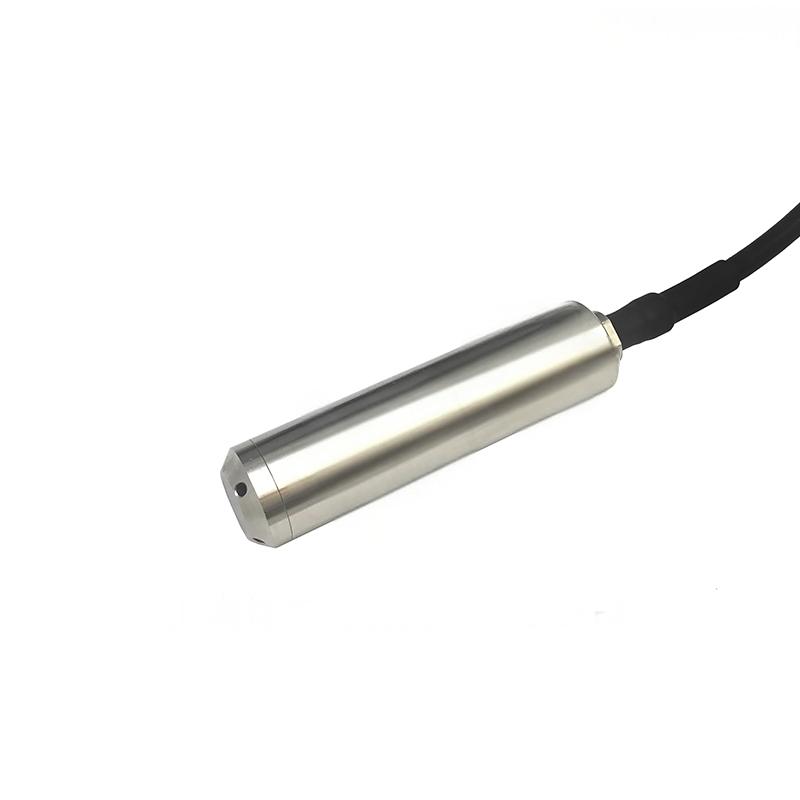

Vibrating Wire Pressure Transmitter(For Agricultural Irrigation & Field Hydrological Stations)

This series includes RS485 output products with Modbus RTU protocol and liquid level sensors with 0.5–2.5V output.

Based on hydrostatic measurement, MD-L100 offers RS485 output using the Modbus RTU protocol, with a supply voltage of 3.3–5V.

• Firefighting water networks

• Heating systems

• Smart water management

• Medical equipment

• Other battery-powered applications

• Low-power design, suitable for battery supply

• Supports periodic power-on working mode

• Available in voltage and RS485 digital output

• 304 stainless steel housing and connectors; 316L diaphragm for strong media compatibility

• Customizable measuring ranges: 0–1/2/5/10/50 m water

• Range: 0–1/2/5/10/50 m water

• Overload pressure: 200%

• Output: RS485

• Supply voltage: 3.3–5V

• Accuracy: 0.5% / 0.25%

• Operating current: ≤2mA

• Long-term stability: ±0.2%FS/year (typical)

• Response time: <100 ms

• Operating temperature: -20 to 60°C

• Compensation temperature: 0 to 60°C

• EMC protection: anti-electromagnetic interference

• Protection: IP68

• Installation: submersible

• Cable: polyurethane, customizable length

• Housing: 304 stainless steel
