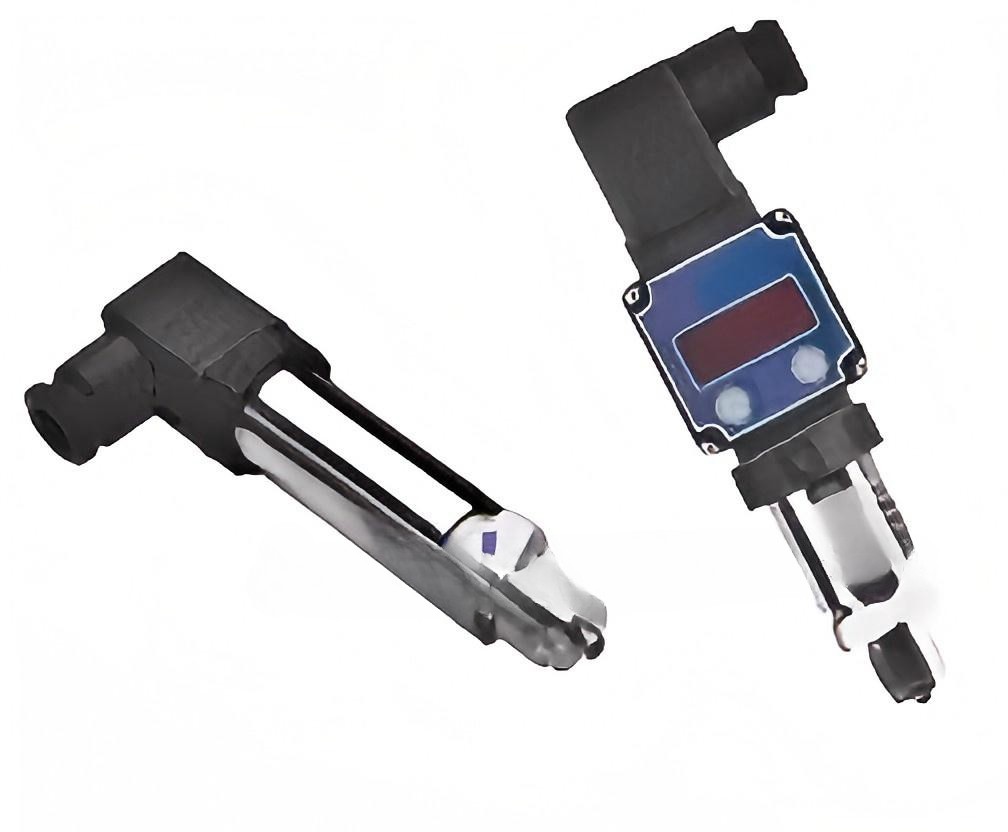

The corrosion-resistant ceramic pressure sensor operates without liquid transmission, with pressure applied directly to the ceramic diaphragm, causing slight deformation. Thick-film resistors are printed on the back of the diaphragm to form a Wheatstone bridge. Due to the piezoresistive effect, the bridge generates a highly linear voltage signal proportional to both pressure and excitation voltage. Depending on the pressure range, the standard output signal is calibrated to 2.0 / 3.0 / 3.3 mV/V, compatible with strain gauge sensors.
With laser calibration, the sensor ensures excellent temperature and long-term stability, featuring built-in temperature compensation from 0–70°C. It is suitable for direct contact with a wide range of media.
Measuring Range: -100 kPa to 60 MPa
Temperature Limits:
Medium: -30°C to +85°C
Ambient: -30°C to +80°C
Storage: -30°C to +80°C
Temperature Effect: TK < ±0.02% FS/K
Accuracy Class: 0.2% / 0.5%
Supply Voltage: 12–36 VDC
Operating Temperature: -30°C to +80°C
Output Signal: 4–20 mA (2-wire), 1–5 V (3-wire)
Electrical Connection: M20×1.5, NPT1/4, G1/2
Load Resistance: ≤1000 Ω
Sensor Type: Ceramic Piezoresistive Sensor CPS181
