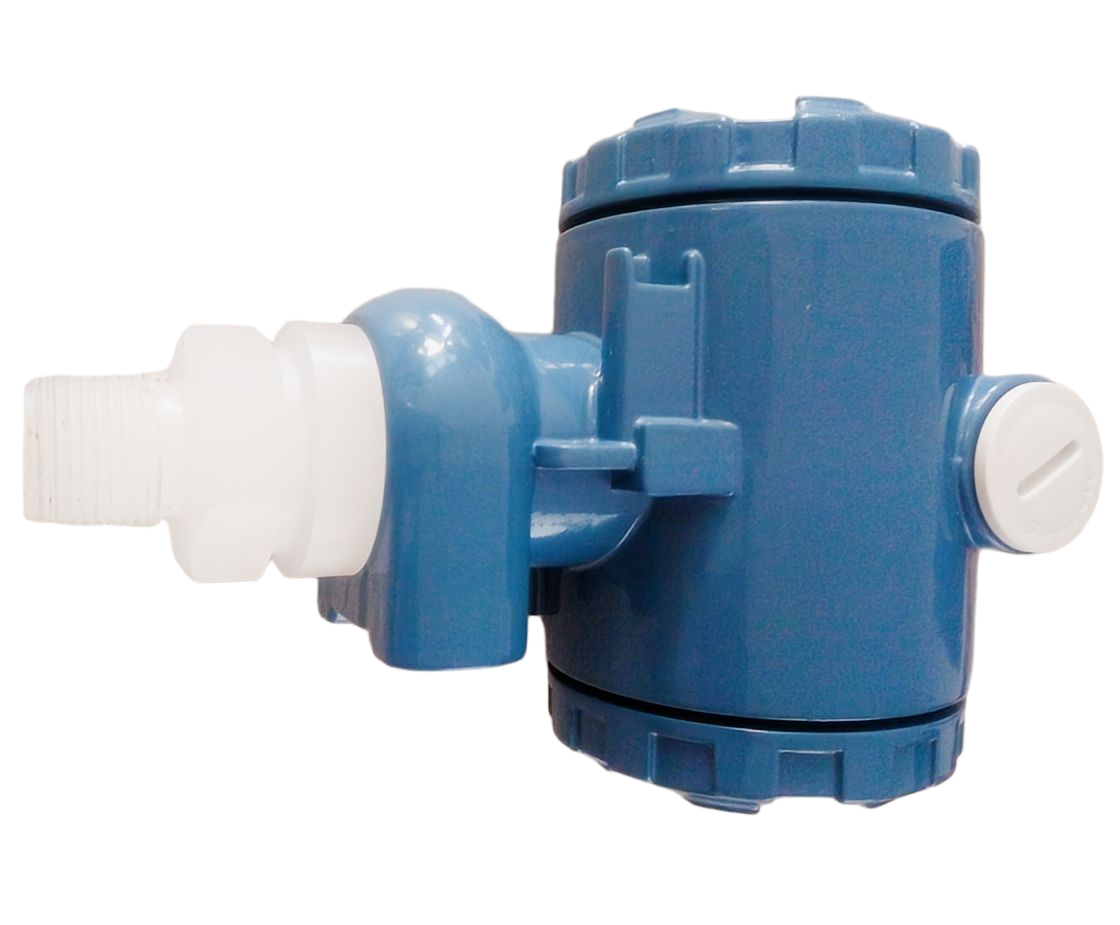

The anti-corrosion pressure transmitter adopts a high-performance ceramic piezoresistive sensor combined with dedicated signal processing circuitry to deliver standard industrial outputs. With PTFE (Teflon) connectors, it offers strong corrosion resistance and excellent stability.
Designed for industrial process control, it provides reliable performance and easy installation, and is widely applied in the automated pressure measurement and control of gases and liquids.
Corrosion, wear, and shock resistance
Dry ceramic structure, non-contaminating
Excellent long-term stability
Full stainless-steel construction
Compact design, easy installation
| Measurement Range | 0~50KPa……1.6MPa | Measurement Medium | Gases and liquids compatible with ceramics and polytetrafluoroethylene |
| Overload Capacity | 1.5 times the range | Pressure Type | Gauge Pressure |
| Accuracy | ±0.5% F.S | Medium Temperature | -20-80℃ |
| Power Supply | 12-36VDC (calibration value 24VDC) | Load Resistance | (U-15)/0.02 |
| Output Signal | 4-20mA 1~5VDC RS485 | Response Time | ≤1ms |
| Pressure Interface | M20×1.5 | Protection Level | IP65 |
