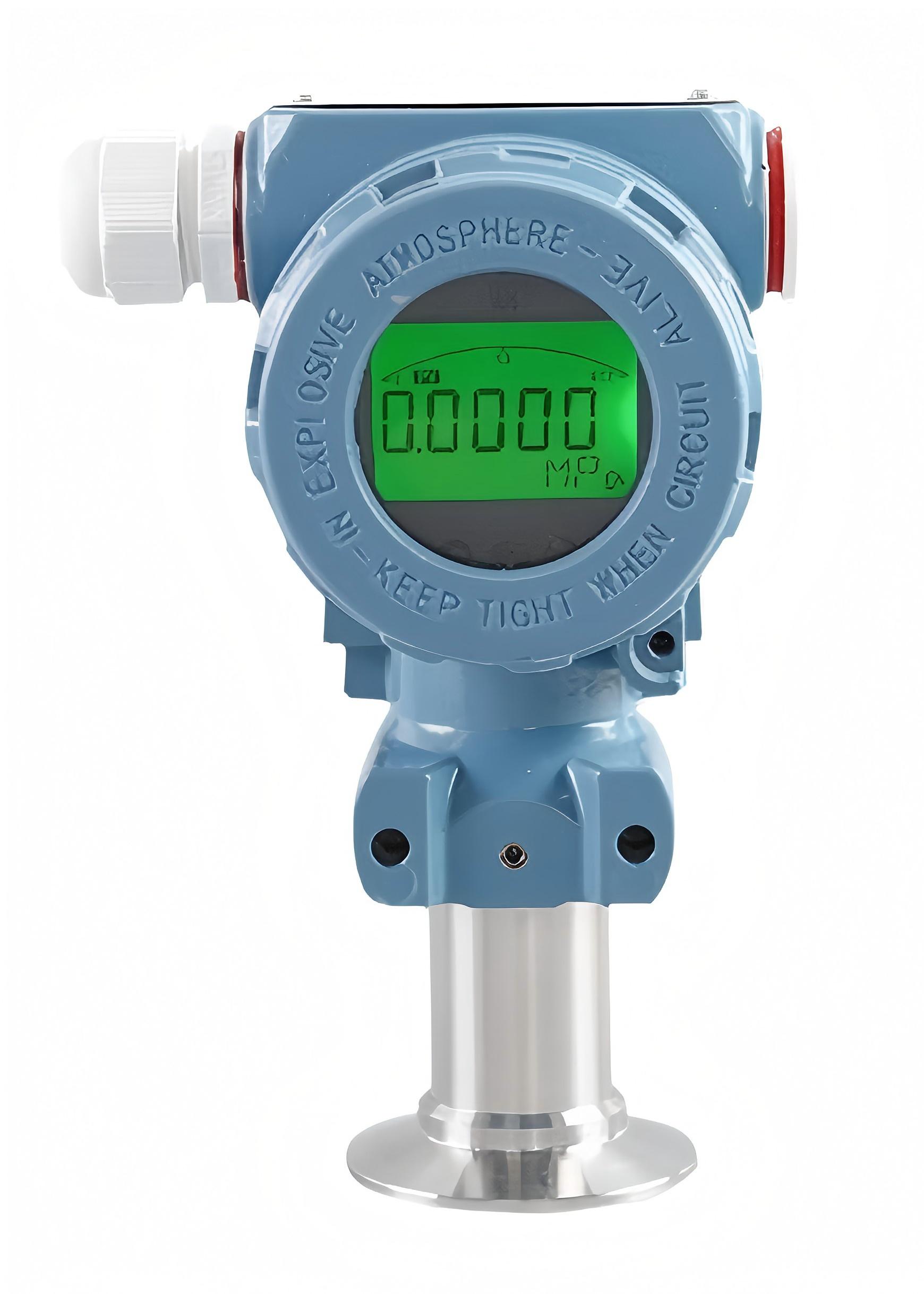

This series of pressure transmitters adopts a high-performance silicon piezoresistive oil-filled sensing core. The built-in dedicated IC converts the millivolt signal from the sensor into standard voltage, current, or frequency outputs, allowing direct connection with computer interface cards, control instruments, smart instruments, or PLCs. For long-distance transmission, current output is recommended.
Compact and lightweight, the transmitter features a fully sealed stainless-steel structure, ensuring reliable operation in corrosive environments. With excellent vibration and shock resistance, it is easy to install and widely used in process control, aerospace, automotive, medical equipment, and HVAC applications.
LCD display
Stainless steel diaphragm
Low temperature drift
Wide measuring range
Imported sensing chip
Strong anti-interference, excellent stability
| Measured Medium | Compatible with liquids, gases, and vapors of 316 stainless steel |
| Accuracy | 0.1%F.S 0.25%F.S 0.5%F.S |
| Stability | 0.2% F.S |
| Measurement Range | -100kPa~60MPa |
| Supply Voltage | 12~24V DC |
| Output | 4~20mA DC two-wire system |
| Communication | HART Communication Protocol |
| Installation Interface | M20*1.5 |
| Operating Temperature | -10~+80℃ |
| Storage Temperature | -40~+125℃ |
| Relative Humidity | Less than 95% |
| Overload Limit | 1.5 to 2 times the rated range |
| Load Resistance | Does not exceed 600Ω to maintain constant current output |
| Zero Temperature Coefficient | Less than 0.02%/℃ |
| Full Scale Temperature Coefficient | Less than 0.02%/℃ |
| Isolation Diaphragm | 316 Stainless Steel |
| Mechanical Protection | IP65 |
| Explosion Proof Rating | iall CT5 |
