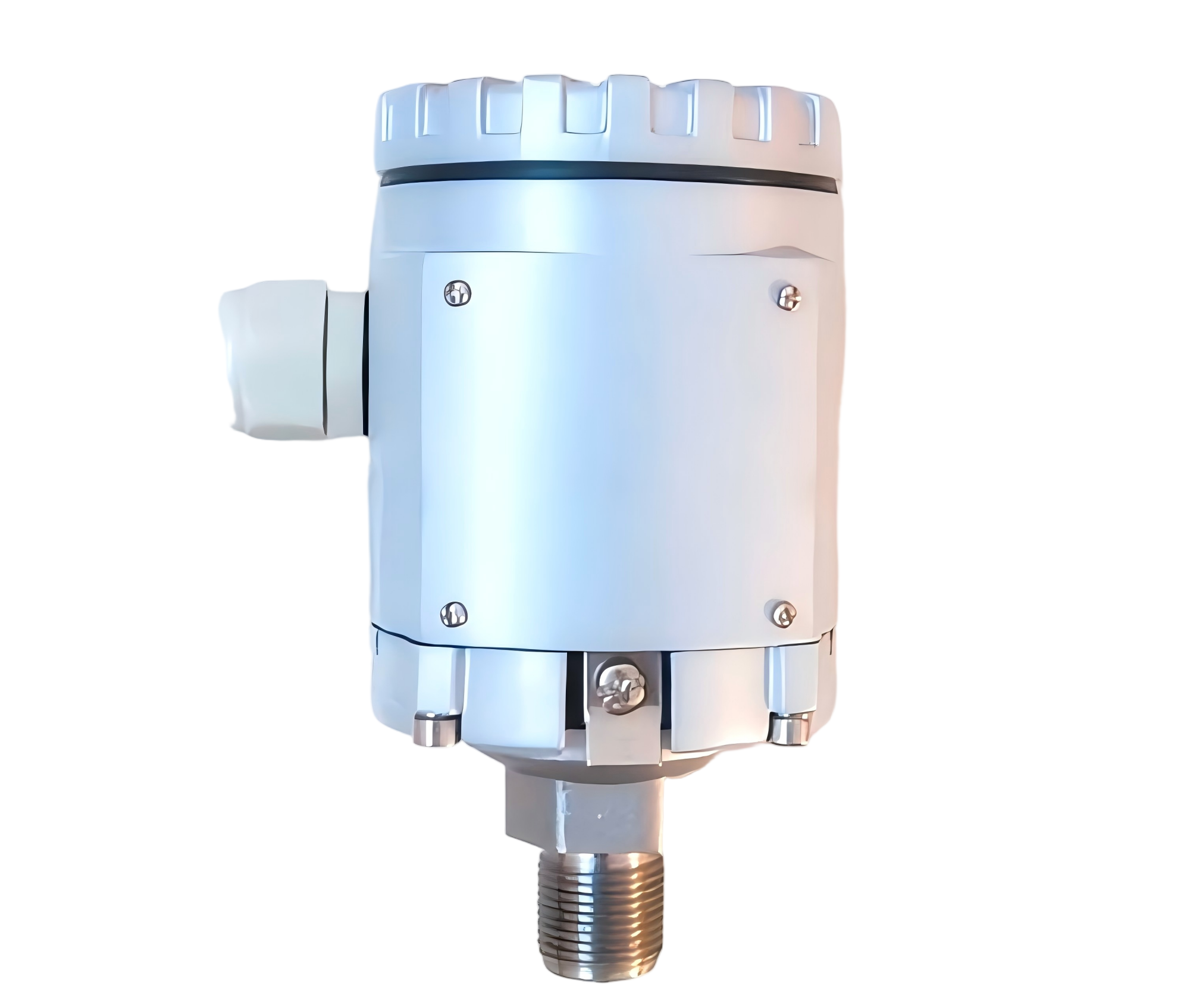

The transmitter is suitable for pressure measurement in tap water, petroleum transportation, chemical processes, and various industrial systems, serving purposes such as measurement, control, alarm, scheduling, and energy saving.
Compact structure, easy installation; supports both direct and bracket mounting.
Advanced diaphragm and oil-filled isolation technology.
High stability and reliability.
Vibration-resistant and immune to radio frequency interference.
Integrated junction box: all wiring connects directly to the transmitter’s field terminal chamber, eliminating the need for additional junction boxes and reducing installation cost and complexity.
Measuring Range: 0–200 Pa to 0–100 MPa; -0.1 MPa to +0.1 MPa
Accuracy: ±0.25% F.S; ±0.5% F.S (typical: 0.5% F.S)
Medium Temperature Range: 0–60 ℃
Power Supply: 24 VDC; 220 VAC (four-wire)
Output Signal: 4–20 mA; (0–5 V, 0–10 V, three-wire)
Overload Capacity: 1.5 × measuring range
Explosion Protection: EX iaⅡCT5
Ingress Protection: Dust- and moisture-proof, all-weather design
Display: 3½-digit LCD (optional, must be specified when ordering)
Process Connection:
Male thread M20×1.5 (default)
Male thread G1/2 or customized on request
