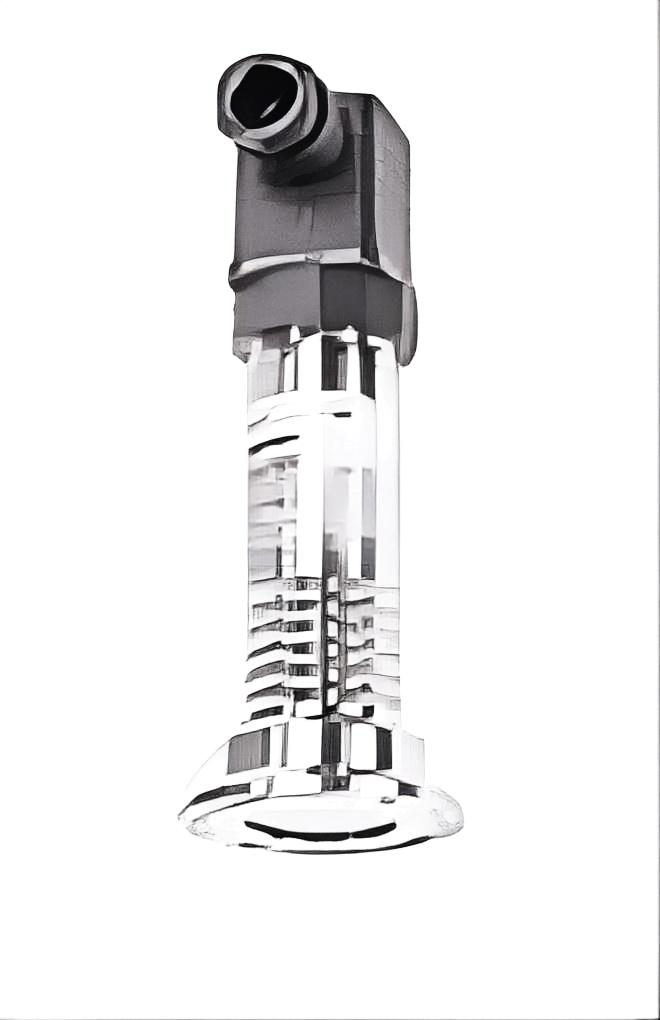

Flange-Mounted High-Precision Ceramic Capacitive Pressure Transmitter (High-Temperature Type, up to 150°C)
Suitable for pressure measurement in food, beverage, pharmaceutical, chemical, and petrochemical industries (with operating medium temperatures up to 150°C).
| Pressure Range | 0~20 mBar to 0~35 Bar |
| Pressure Type | Gauge Pressure, Sealed Gauge Pressure, Absolute Pressure |
| Supply Voltage | 12~36 Vdc |
| Output | 4~20 mA (2-wire) |
| Sensing Technology | Ceramic Capacitor |
| Primary Seal | Fluororubber |
| Medium Compatibility | 316L Stainless Steel, Ceramic, Fluororubber |
| Medium Temperature Range | -40°C ~ 150°C |
| Accuracy | 0.10%FS, 0.25%FS |
| Temperature Drift Range | -40°C ~ 150°C |
| Zero Point Temperature Drift | 0.015%FS/°C, 0.010%/°C |
| Full Scale Temperature Drift | 0.015%FS/°C, 0.010%/°C |
| Adjustable Zero/Full Scale | Optional |
| Wetted Material | 316L Stainless Steel |
| Main Housing Material | 304, 304L Stainless Steel |
| Pressure Connection Port | DN 1 |
| Electrical Connection Port | Hirschmann Square Connector (IP 65), Cable (IP 67) |
