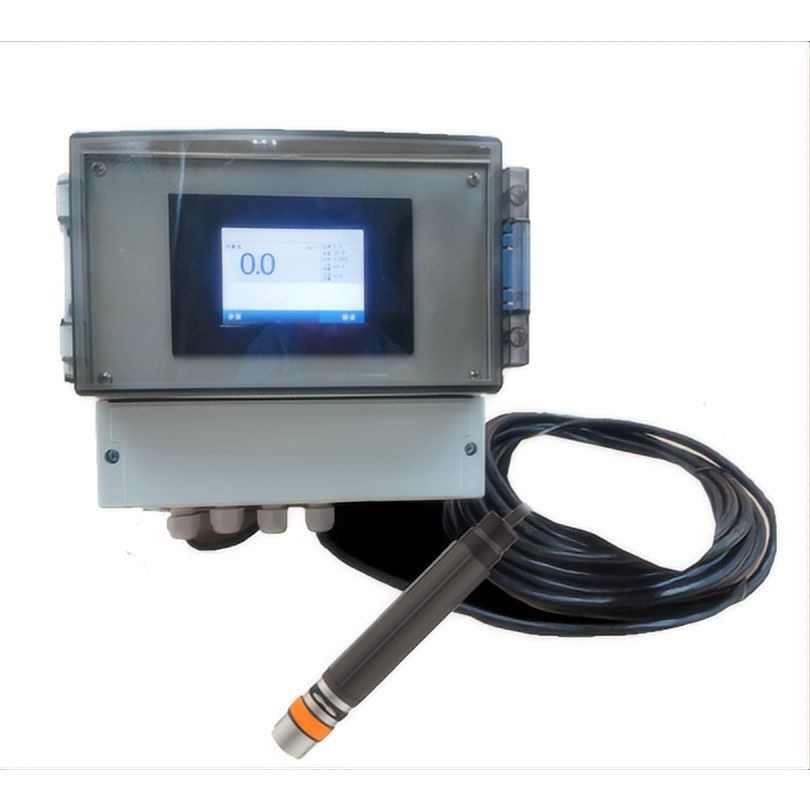

Online Rapid BOD Analyzer
A standard industrial-output instrument for fast measurement of biochemical oxygen demand (BOD), offering high accuracy, stability, and ease of use.
Widely applicable for wastewater monitoring across industries, including industrial effluents, municipal sewage, domestic wastewater, and surface waters. Suitable for chemical, petroleum, coking, paper, metallurgy, brewing, pharmaceutical industries, and other industrial or domestic wastewater treatment applications.
| Parameter | Technical Indicator |
| MOdel | LS BOD-1FDWTG |
| Measurement Range | 0-1000mg/L |
| Measurement Accuracy | 0.5% |
| Measurement Method | Fluorescence Spectrometry |
| Resolution | 1mg/L |
| Response Time (T90, seconds) | 1s |
| Baud Rate | 2400bps/4800bps/9600bps/19200bps/115200bps |
| Communication Port | RS485 |
| Power Supply | 12V DC |
| Power Consumption | ≤0.15W(12V DC,25℃) |
| Operating Temperature | -40℃ to +85℃ |
| Operating Humidity Environment | 0%-90%RH (Relative Humidity), non-condensing |
| Operating Pressure Range | Standard Atmospheric Pressure ±10% |
| Probe Size | φ32×201(mm) |
| Probe Cable Size | 5 meters (default) |
