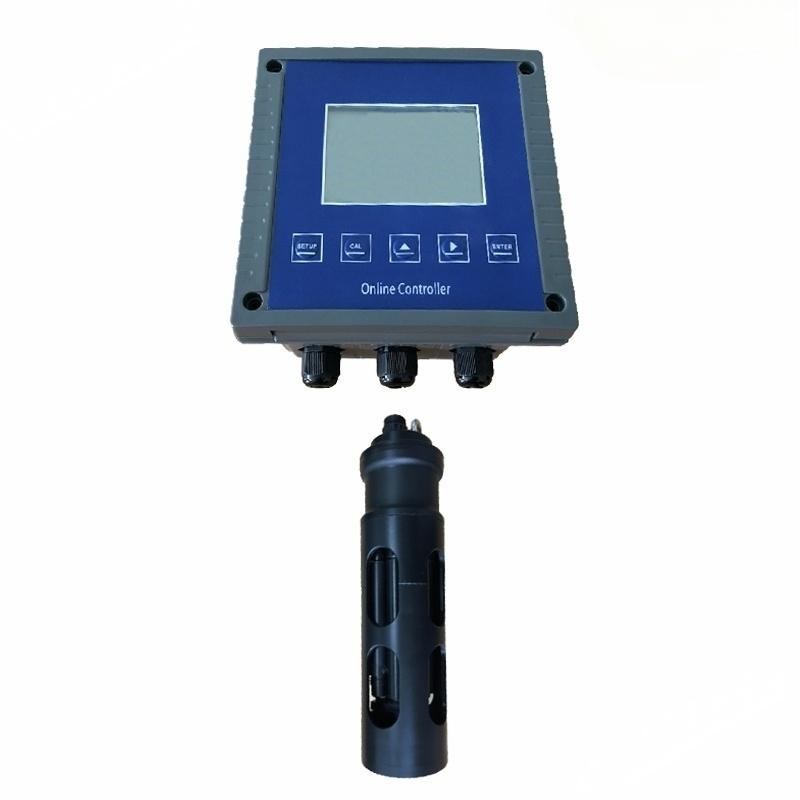

Multi-parameter water quality analyzer
Online Ammonia Nitrogen Sensor Reagent-free and eco-friendly, designed for real-time online monitoring.
Integrates ammonium, potassium (optional), pH, and reference electrodes, with automatic compensation for potassium, pH, and temperature.
Direct immersion installation provides a more economical, convenient, and sustainable alternative to traditional analyzers.
Equipped with a self-cleaning brush to prevent biofouling, extend maintenance cycles, and ensure high reliability.
RS485 output with Modbus protocol for easy system integration.
Digital sensor with RS485 output, supporting MODBUS
Reagent-free, pollution-free, cost-effective, and environmentally friendly
Automatic compensation for potassium ions, pH, and temperature
Self-cleaning brush prevents biofouling and extends maintenance intervals
Rainwater, municipal wastewater, industrial effluent, surface water, drinking water, seawater, natural water bodies, water treatment, and industrial process control.
| Model | LS NH3N-1EDWSG |
| Ammonia Nitrogen Range | 0-1000mg/L NH4-N |
| Ammonia Nitrogen Accuracy | 5% |
| Ammonia Nitrogen Resolution | 0.1 mg/L |
| pH Range | 0-14 |
| pH Accuracy | ±0.1 |
| pH Resolution | 0.01 |
| Protection Rating | IP68 |
| Maximum Depth | Submersible to 10 meters |
| Temperature Range | 0 ~ 50℃ |
| Ammonia Nitrogen Probe Size | 64x251 mm(Φ xL) |
| Sensor Interface | Supports RS-485, MODBUS protocol |
| Assembly | Immersion type |
| Power Information | DC 5~12V, current <50mA |
| Probe Cable Length | 10 meters (default), customizable |
| Enclosure Material | POM |
