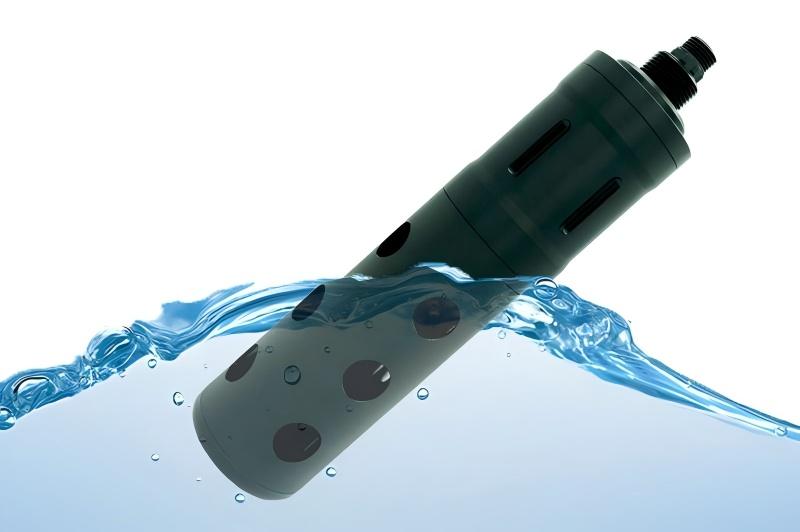

Multi-parameter water quality analyzer
The online ammonia nitrogen sensor requires no reagents, ensuring an eco-friendly, pollution-free design.
It integrates ammonium, potassium (optional), pH, and reference electrodes, with automatic compensation for potassium (optional), pH, and temperature.
Equipped with RS485 digital interface supporting MODBUS, it is easily integrated into water quality monitoring systems.
Widely applicable for surface water, wastewater, and tap water testing.
Direct immersion installation with a self-cleaning brush prevents biofouling, extends maintenance intervals, and ensures excellent reliability.
Suitable for water quality monitoring in surface water, wastewater, and tap water applications.
| Model | LS NH3N-1EDS1G |
| Measurement Parameters | Ammonia Nitrogen Sensor |
| Range | 0-100mg/L (optional 0~1000mg/L) |
| Ammonia Nitrogen Resolution | 0.01 mg/L |
| pH Accuracy | ±0.1 pH |
| Protection Grade | IP68 |
| Temperature Range | 0～50℃ |
| Power Consumption | 0.1W (without brush rotation) 1W (with brush rotation) |
| Size | ①64mm*271mm (with protective cover) |
| Probe Cable Length | 10 meters (default), customizable |
