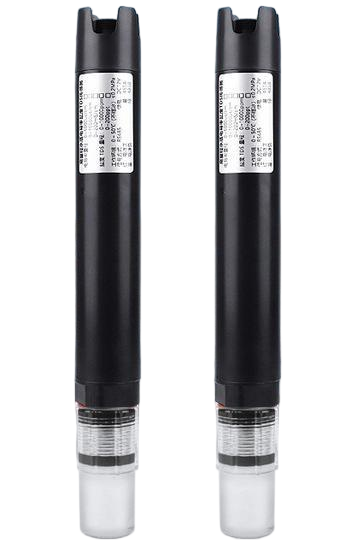

Multi-parameter water quality analyzer
Designed for environmental water quality monitoring and testing of water samples with both high and low ionic strength, this sensor meets the requirements of most industrial and environmental applications for online conductivity, salinity, and TDS measurement.
ABS
| Model | LS TDS-1EDNOG |
| Measurement Principle | Contact electrode method |
| Signal Mode | RS485 (MODBUS-RTU) |
| Conductivity Measurement Range | (0～5000 μS/cm)(0～10000 μS/cm)(0-200mS/cm) |
| Conductivity Resolution | 1μS/cm 0.01mS/cm |
| Salinity Measurement Range | 0-10000ppm 0-200ppt |
| Salinity Resolution | 1ppm 0.01ppt |
| TDS Measurement Range | 0-10000ppm 0-200ppt |
| TDS Resolution | 1ppm 0.01ppt |
| Measurement Accuracy | ±1.5%; ±0.1°C |
| Response Time | Approximately 30s (98% stationary liquid) |
| Housing Material | ABS |
| Temperature Compensation | Automatic Temperature Compensation (M1820Z) |
| Cable Length | Standard with 5 meters |
| Supply Voltage | 12-24VDC (0.4W @ 12V) |
| Measurement Environment | Temperature 0~50°C (non-freezing), < 0.2MPa |
| Waterproof Rating | IP68 |
| Installation Method | Immersion installation, NPT 3/4 thread |
