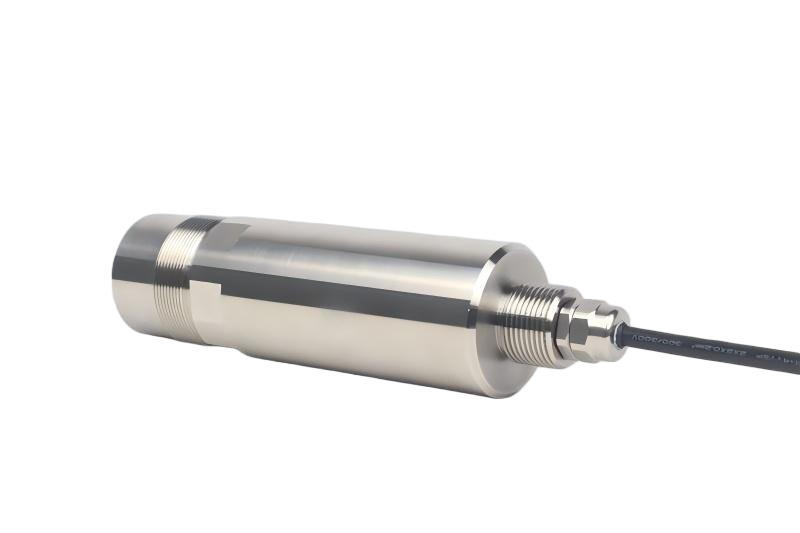

Multi-parameter water quality analyzer
Digital sensor with direct RS-485 output, supporting MODBUS/RTU.
90° scattered light principle with built-in temperature compensation.
Fiber-optic structure for strong resistance to ambient light interference.
Infrared LED light source with optical filtering for high stability and anti-interference.
Corrosion-resistant passivated surface treatment.
Low power consumption with anti-interference circuit design.
For municipal, industrial, and environmental water monitoring
| Name | Parameter |
| Model | LS TUR-1PDETG |
| Output Signal | Supports Rs-485, MODBUS/RTU Protocol |
| Measurement Method | 90° Scattered Light Method |
| Range | 0~3000NTU |
| Accuracy | ±5% or ±10NTU (0-40℃); ±10% (>40℃); ±0.5℃ |
| Resolution | 0.1NTU, 0.1℃ |
| Operating Conditions | 0～100℃, <0.5MPa |
| Calibration Method | Two-Point Calibration |
| Response Time | 30 seconds (T90) |
| Temperature Compensation | Automatic Temperature Compensation (Pt1000) |
| Power Supply | 12 or 24VDC ±20%, 20mA; |
| Size | Diameter 50mm; Length 181.5mm; |
| Protection Rating | IP68 |
| Service Life | Sensor 3 years or more |
| Cable Length | 10 meters (default), customizable |
| Sensor Housing Material | 316L (other) |
