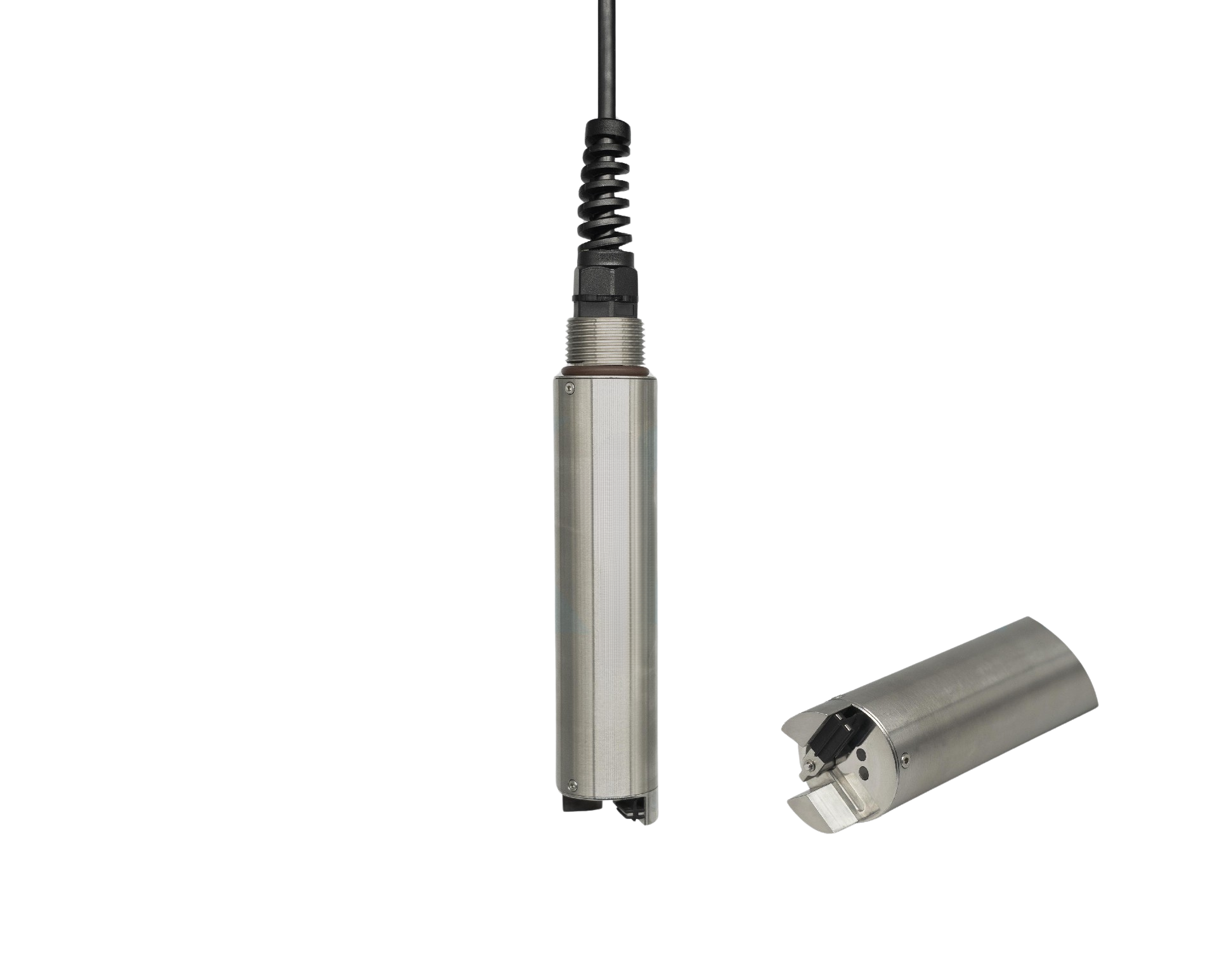

Multi-parameter water quality analyzer
Automatic cleaning wiper with customizable brushing cycles.
Anti-lock design prevents electrode misalignment from debris buildup.
Sapphire mirror surface (9H) resists sand abrasion (8H), ensuring accuracy.
Ambient light compensation minimizes interference; light intensity compensation eliminates errors from source attenuation.
Dual-function turbidity and suspended solids measurement in a compact design.
Infrared 880 nm LED source with low refraction and strong penetration.
Available in 316L stainless steel or titanium, suitable for diverse applications.
IP68 protection, withstands up to 1 bar pressure.
For municipal, industrial, and environmental water monitoring
| Model | LS TUR-1PDW1G |
| Measurement Method | Infrared Optical Method |
| Range | Turbidity: 0-4000 NTU; Suspended Solids: 0-4000 mg/Lw |
| Resolution | Turbidity: 0.01 NTU; Suspended Solids: 0.1 mg/Lw |
| Measurement Accuracy | Measurement value ±5% |
| Output Signal | RS485 (Modbus standard communication protocol) |
| Interface Thread | 3/4' NPT thread |
| Main Material | 316L stainless steel |
| Overall Dimensions | D32.5mm, L157mm (3/4” NPT) |
| Protection Level | IP68 |
| Cable Length | 3 meters/10 meters/20 meters optional; customizable length |
