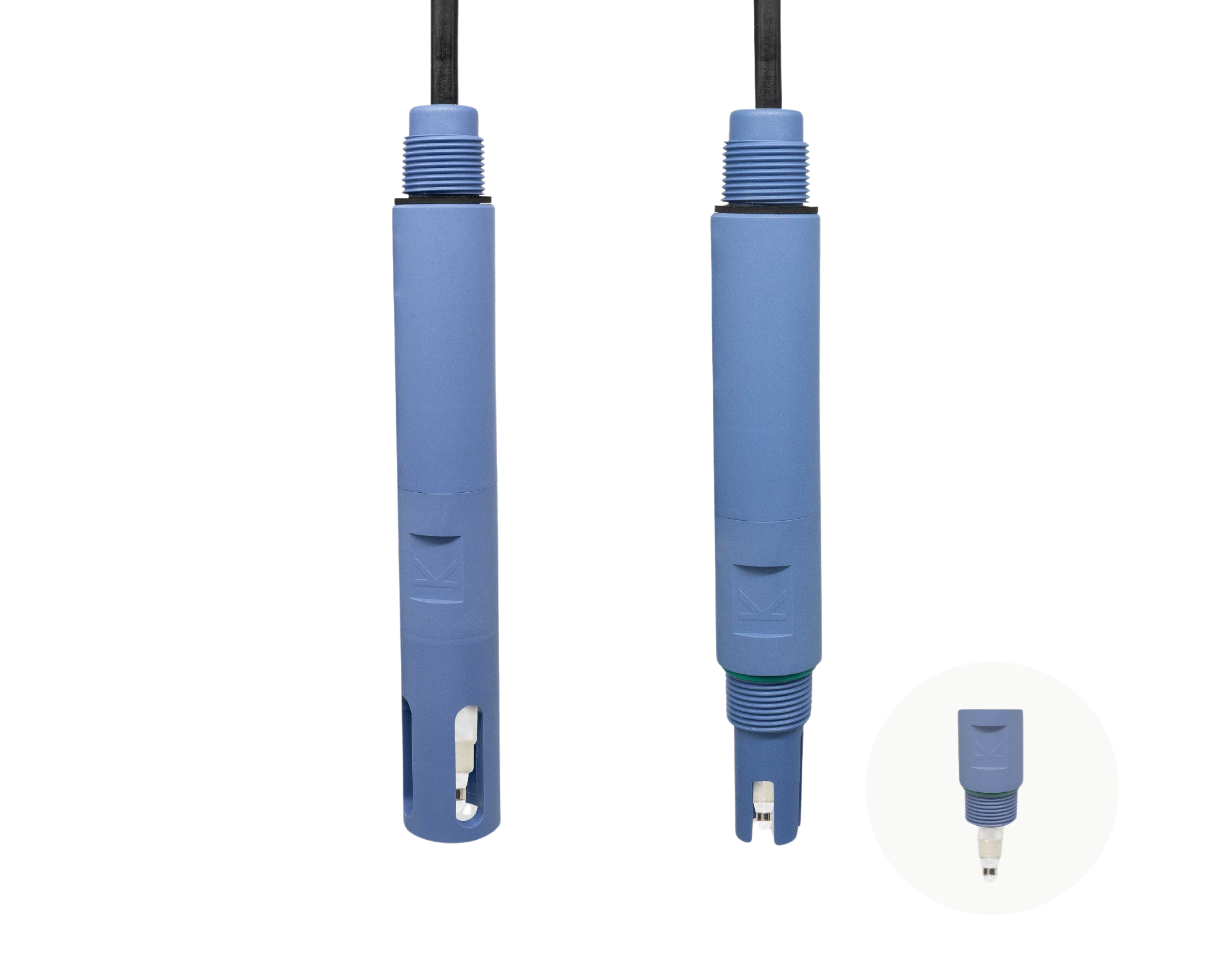

Multi-parameter water quality analyzer
Dual salt-bridge design enhances reference solution contamination resistance and extends service life.
Annular frosted leaching interface slows KCl release, further prolonging lifespan.
Oil-based internal reference minimizes blockage risk.
Specially treated annular platinum surface resists contamination, ensuring measurement accuracy.
Electrode PCB housed in a shielded enclosure to prevent electromagnetic interference.
Auto-recognition enables plug-and-play operation without initial calibration.
IP68 protection reduces damage from human or environmental factors.
| Model | LS ORP-1EDWTG |
| Measurement Method | Platinum/Glass Electrode Method |
| Range | -2000mV~+2000mV |
| Resolution | 1mV |
| Measurement Accuracy | ±1mV |
| Operating Temperature | -5°C~85°C |
| Temperature Compensation | None |
| Response Time | <15s |
| Power Supply | 5~12V DC; <1W |
| Main Material | Polycarbonate/Glass/Platinum |
| Protection Level | IP68 |
