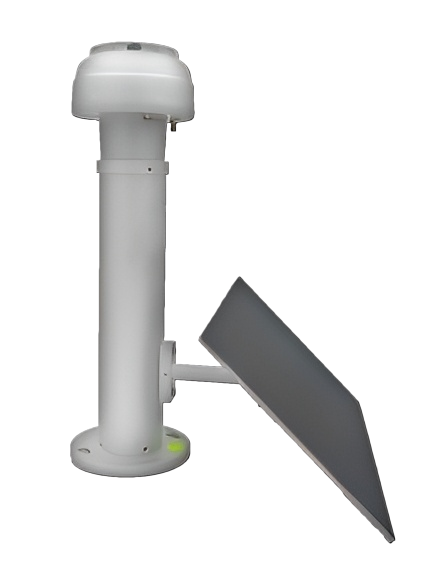

| Model | LS HYRP-1BSSAG | |
| Collection Parameters | Pressure-sensitive Surface | Effective pressure-sensitive surface diameter is 92mm |
| Measurement Range | 0～8mm/min (millimeters/minute) | |
| Accuracy and Resolution | Accuracy: ±4%F·S (Daily cumulative rainfall) | |
| Resolution: 0.01mm | ||
| System Functions | Remote Data Collection | Remote monitoring interface for remote data polling |
| Remote Configuration | Remote configuration of the device through the remote monitoring interface | |
| Local Configuration | Local configuration of the device through the RS485 serial port | |
| Local Reading | Acquired data and device status information can be read through the RS485 serial port | |
| Automatic Clock Synchronization | Automatic time calibration after network connection, and remote synchronization of time calibration | |
| Remote Operation and Maintenance | Supports remote management and real-time monitoring of device status | |
| Communication Transmission | Multiple Communication Configurations | Built-in 4G all-network communication module, supports 2/3/4G network + LORA (optional) communication methods |
| Multi-Center Data | Data information can be uploaded to four data centers simultaneously for access by different users | |
| LoRa Self-Organizing Network | Supports network-free environment networking transmission and triggering of on-site alarms (optional) | |
| Protocol | Supports 'Technical Requirements for Geological Disaster Monitoring Data Communication', customizable development of proprietary protocols | |
| Data Transmission | Device features monitoring, automatic re-dialing and reconnection, automatic judgment of data transmission success, automatic resending of unsent data upon network recovery | |
| Reporting Information | Set to report latitude and longitude, battery voltage, signal strength, IoT card number, etc. | |
| Threshold Triggering | When the collected data exceeds the set threshold, automatically enter the encrypted data collection mode | |
| Upload Interval | 0-72h configurable as needed, default 1-hour upload interval | |
| Location Function | Supports GPS and Beidou positioning | |
| Hardware Specifications | Interface | Aerospace 4-pin connector: 1 power supply, 1 RS485 (Supports External RS485 Sensors with Protocol Integration) |
| Power Supply | Power input: DC 6-28V | |
| Energy Bar (Optional) | Capacity: 12.8V/15Ah | |
| Power Consumption | ≤15mA @ DC12V for 1-hour upload interval | |
| Temperature and Humidity Monitoring | Built-in temperature and humidity sensor, precise identification of the external environment | |
| Storage | Supports saving more than 2 years of historical data, with automatic overwrite of old files when space is insufficient | |
| Size | Maximum outer diameter 127mm, height: 126mm (with fixed suspension) | |
| Installation fixing screw hole: M16*2.0 | ||
| Environmental Conditions | Protection Level | IP67 |
| Operating Temperature | -30~+75℃ | |
| Storage Temperature | -40~+80℃ | |
| Relative Humidity | 95%RH without condensation | |
