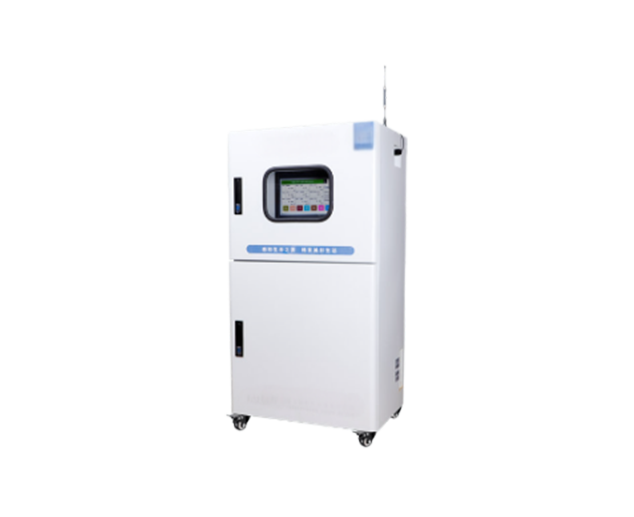

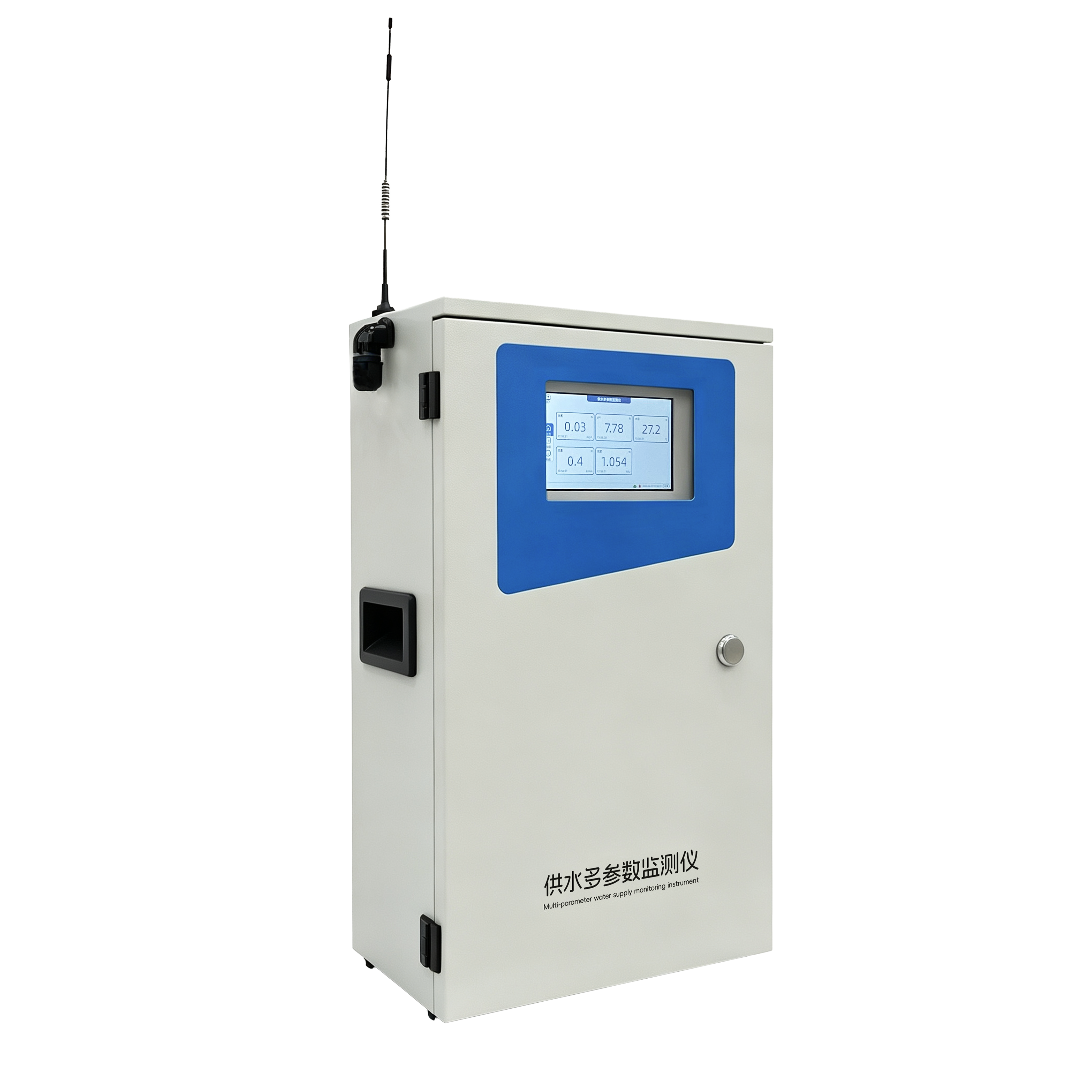

BWS-MP multi-parameter water quality analyzer
The multi-parameter water quality analyzer features an integrated all-in-one design capable of online monitoring of various water quality parameters. With configurable measurement selections, it delivers high accuracy and excellent repeatability. The modular sensor configuration supports flexible combinations, enabling simple installation and low-maintenance design. Its reagent-free operation eliminates chemical consumption and integrates advanced functionalities such as flow stabilization with bubble elimination, automatic cleaning, real-time data acquisition, and remote data transmission, significantly reducing system integration complexity and operational workload.
●Integrated all-in-one design capable of multi-parameter water quality monitoring.
●Standard parameters: pH, residual chlorine, dissolved oxygen, conductivity, turbidity, ORP, and temperature (additional parameters customizable).
●Configurable measurement selections with high accuracy and excellent repeatability.
●Modular sensor configuration supporting flexible combinations, featuring simple installation and low-maintenance design.
●Multiple output options: RS485 MODBUS-RTU protocol and 4G wireless communication.
●Built-in functions including flow stabilization with bubble elimination, automatic data acquisition, and remote transmission, significantly reducing system integration
●complexity and workload.
Urban/rural water treatment plants, water distribution networks, secondary water supply systems, end-user tap points, indoor swimming pools, large-scale purification equipment, and potable water dispensers.
Parameter |
Specification |
Value |
PH |
Measuring Range |
0-14PH |
Slope |
≥96% |
|
Zero Potential |
7.00 ±0.25 |
|
Residual Chlorine |
Measuring Range |
0-20mg/L |
Calibration Method |
Laboratory Comparative Method |
|
Accuracy |
±2% 或±10ppb HOCI |
|
Turbidity |
Measurement Method |
Light Scattering Method |
Range |
0-400NTU |
|
Accuracy |
±1%FS |
|
Conductivity (Optional) |
Range |
0-20mS/cm |
Accuracy |
≤±3% |
|
Resolution |
0.01uS/cm |
|
Compensation Mode |
Auto/Manual |
|
Dissolved Oxygen (Optional) |
Range |
0-20mg/L |
Sensitivity |
0.05% of Range |
|
Accuracy |
2% FS |
|
ORP |
Range |
-2000-2000mV |
Slope |
≥96% |
|
Membrane Resistance |
<500MΩ |
|
Expansion Port |
Port Type |
RS485 |
Data Communication |
Transmission Protocol |
RS485、4G-CAT1 |
System |
Power Supply |
(220±22)V AC |
Power Consumption |
30W |
|
Cabinet Dimensions |
1100mm*600mm*404.5mm |
|
Operating Temperature |
0℃~+60℃ |
|
Operating Humidity |
≤85%RH（non-condensing） |
|
Inlet Flow Rate |
500～1000 mL/min |
|
Inlet Pressure |
<3kg/cm³ |
|
Communication Interface |
RS485 Modbus RTU + MQTT Protocol |
|
Display |
7-inch Color Touch Screen |
