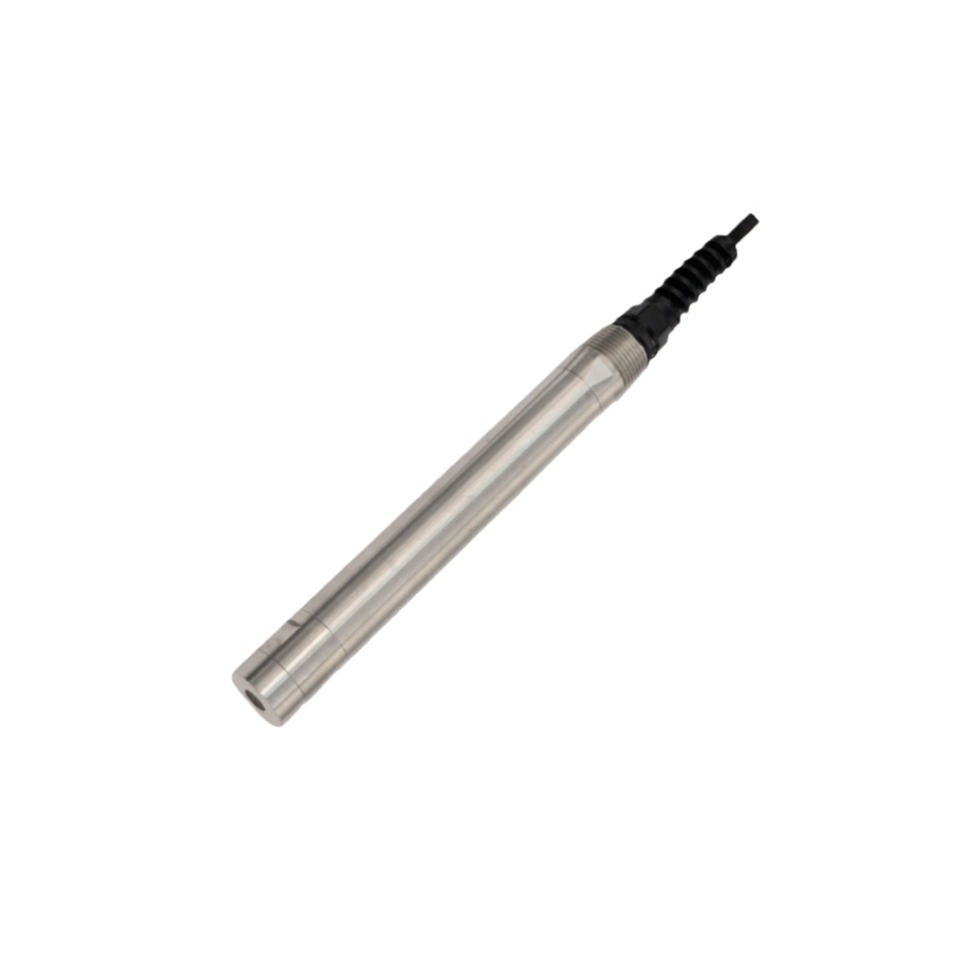

Multi-parameter water quality analyzer
Enhanced fluorescent coating extends storage and service life over threefold.
High membrane consistency ensures no multi-point calibration after replacement.
Built-in automatic compensation curves for salinity, pressure, and temperature guarantee accuracy.
Ultra-low detection limit of 0.02, ideal for anoxic conditions.
Oxygen-free operation, insensitive to flow or stirring, and immune to cross-contamination.
Available in 316L stainless steel or titanium, suitable for diverse applications, with IP68 protection.
| Model | LS DO-1PDW1G |
| Measurement Method | Fluorescence method |
| Measurement Range | 0-20mg/L or 0-200% |
| Resolution | 0.01mg/L |
| Measurement Accuracy | ±0.1mg/L |
| Operating Temperature | -10~60℃ |
| Pressure Range | 0~5bar@25℃ |
| Temperature Compensation | PT1000 automatic temperature compensation |
| Response Time | <30S |
| Power Supply | 5-12V DC; ≤2W |
| Material | 316L, titanium alloy (optional) |
| Size | L:179mm, Φ:25mm, 3/4”NPT |
| Protection Level | IP68 |
